Description

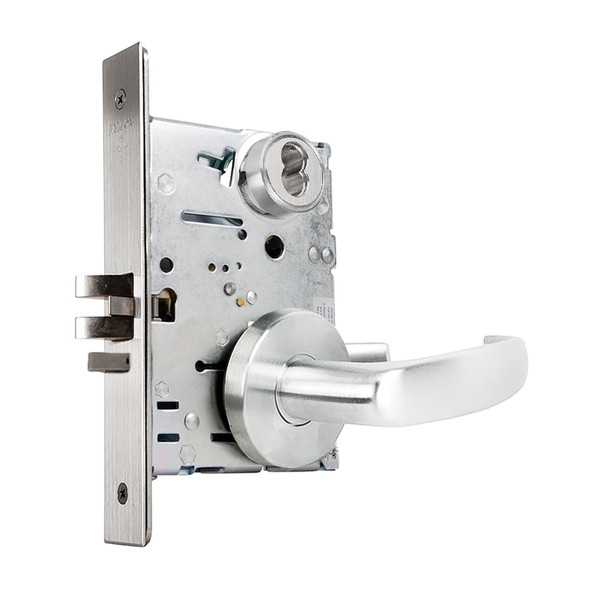

The Falcon MA561B QG 625 is a heavy-duty mortise lock engineered for high-traffic commercial environments including offices, hospitals, and educational facilities. Its two-piece stainless steel latch and anti-friction bolt mechanism, combined with a 1-inch throw deadbolt featuring saw-resistant rollers, deliver dependable security and durability without compromise.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC) that simplifies re-keying and retrofit projects. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and electrified options. Contact our team at sales@edlocks.com or 1-877-207-6067 for personalized assistance with your commercial security project.
Specifications
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch bolt: 3/4" projection, stainless steel with mechanical anti-friction design
- Deadbolt: 1" throw, stainless steel with 13/16" diameter saw-resistant rollers
- Faceplate: 1-1/4" x 8", brass or stainless steel, adjustable for door bevel
- Cylinder: Solid brass, 6 or 7-pin on interchangeable core
- Keyway: G keyway standard on standard cylinder, A keyway standard on I/C cylinder
- Handing: Right hand standard, left hand optional, reversible in field
- ANSI/BHMA: Meets ANSI/BHMA 156.13 Series 1000
- UL: 3 hour A label
- Electrified options: 12 or 24 VDC available
