Description

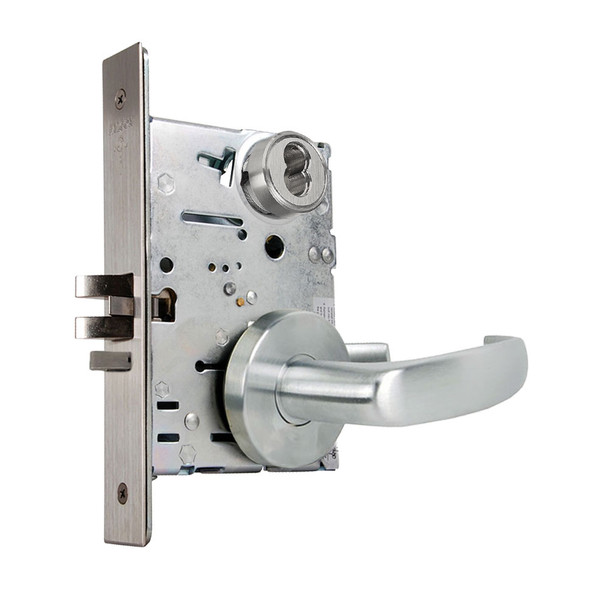

The Falcon MA561B QG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This durable, dependable lock delivers security and reliability through constant use, featuring a two-piece stainless steel latch bolt with 3/4" projection and a 1" throw dead bolt with saw-resistant rollers. The interchangeable core design simplifies re-keying and maintenance across your facility.
Compatible with standard 1-3/8" to 2-1/2" door thicknesses and SFIC products, this lock meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Right-hand handing is standard; left-hand and field reversibility are available. For expert guidance on keying options, electrified functions, or finishes, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067.
Specifications
- Door Thickness: 1-3/8" to 2-1/2" standard
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5, 6, or 7-pin (standard); 6 or 7-pin (interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable for bevel
- Finishes: Available per Falcon chart; armored front with stabilizing ribs
- Keying: G keyway standard (standard cylinder); A keyway standard (IC cylinder)
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
- Electrified: Available in 12 or 24 VDC
- Handing: Right-hand standard; left-hand optional, reversible in field
- Includes: Two nickel silver keys
