Description

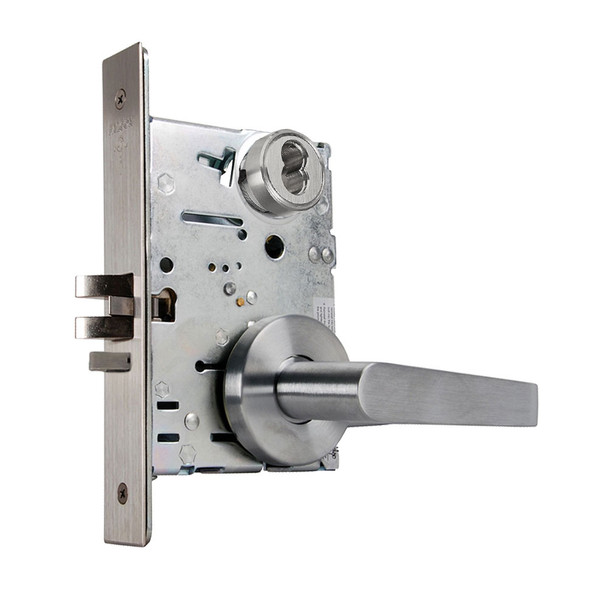

The Falcon MA561B is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational institutions. Its interchangeable core design allows quick re-keying without removing the lock, while the two-piece stainless steel latch and saw-resistant roller bolts provide reliable security for constant-use applications.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" and is compatible with SFIC products from other manufacturers. Available in multiple finishes and electrified options (12 or 24 VDC), it meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our security experts at sales@edlocks.com or 1-877-207-6067 for handing options, keying specifications, and installation guidance.
Specifications
- Brand: Falcon
- Model: MA561B DG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplate: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin for interchangeable core
- Keyways: G keyway standard; A keyway for I/C cylinder
- Handing: Right hand standard; left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000; UL 3-hour A label
