Description

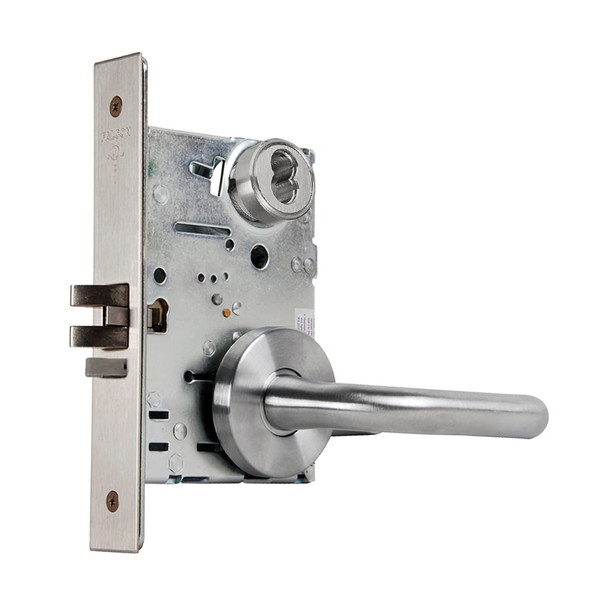

The Falcon MA561B SG 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This heavy-duty lock combines security with reliability, featuring a two-piece stainless steel latch bolt, 1 inch dead bolt with saw-resistant rollers, and an interchangeable core for fast re-keying without removing the lock from the door.
Compatible with SFIC products and standard door thicknesses of 1-3/8 inch to 2-1/2 inch, the MA561B accommodates both 2-3/4 inch backset installations. Right-hand handing is standard; left-hand and field-reversible options available. For expert sizing, keying, and installation guidance, contact E.D. Locks at sales@edlocks.com or call 1-877-207-6067.
Specifications
- Brand: Falcon
- Model: MA561B SG 630
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: G keyway standard cylinder; A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Dead Bolt: 1 inch throw stainless steel with 13/16 inch diameter hardened steel rollers
- Faceplates: 1-1/4 inch x 8 inch brass or stainless steel, armored and adjustable
- Strike: Brass or stainless steel, non-handed, ANSI A115.1 compliant
- Electrified: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
