Description

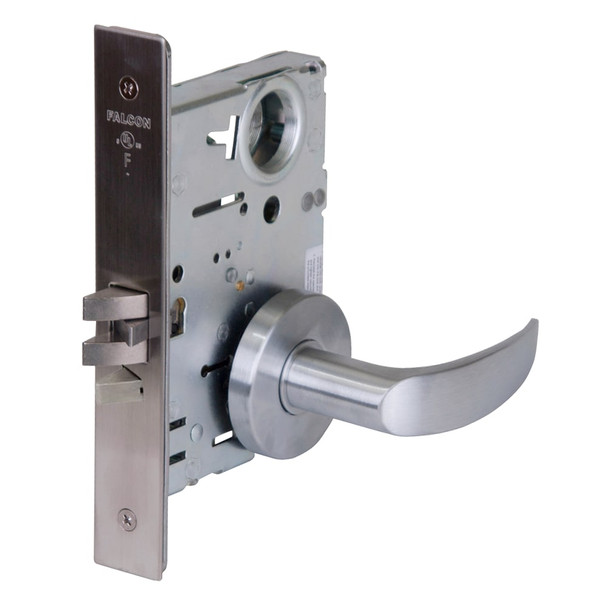

The Falcon MA561L AG 626 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This dependable lock combines security with durability, featuring a mechanical anti-friction latch and saw-resistant dead bolt that withstand constant use. The interchangeable core design enables quick re-keying without removing the lock body, saving time and labor on retrofit projects.
Compatible with standard SFIC products, this lock accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and meets ANSI/BHMA Series 1000 standards. Right-hand handing ships standard; left-hand and field-reversible options are available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and electrified options. Contact us at sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Brand: Falcon
- Model: MA561L AG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel
- Cylinders: Solid brass, 5, 6, or 7-pin available
- Keying: Includes two nickel silver keys
- Electrified: Available in 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
