Description

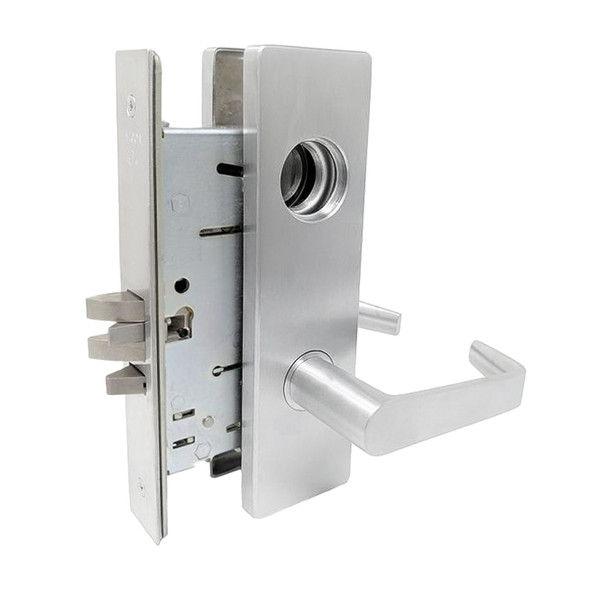

The Falcon MA561L AN 626 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It features an interchangeable core for quick re-keying, a 1-inch throw deadbolt with saw-resistant rollers, and a two-piece stainless steel latch bolt. Designed to handle constant use without fail, this lock combines security and reliability at an affordable price point.
The MA561L accommodates door thicknesses from 1-3/8 to 2-1/2 inches with a 2-3/4-inch backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label standards. SFIC-compatible cylinders are available in multiple pin configurations. As an authorized Falcon dealer, E.D. Locks provides expert guidance on handing, keying, and electrified options. Contact sales@edlocks.com or call 1-877-207-6067 for detailed specifications and support.
Specifications
- Door Thickness: 1-3/8 to 2-1/2 inches
- Backset: 2-3/4 inches
- Case: Cold formed steel, zinc dichromate plated, 0.090 inches thick
- Deadbolt Throw: 1 inch stainless steel with saw-resistant rollers
- Latch Bolt: Two-piece stainless steel, 3/4 inch projection
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Hubs: Hardened steel
- Faceplates: 1-1/4 x 8 inches, brass or stainless steel
- Handing: Right hand standard, left hand optional, reversible
- Electrified: Available in 12 or 24 VDC
- Rating: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Keyways: G standard on standard cylinder, A standard on interchangeable core
