Description

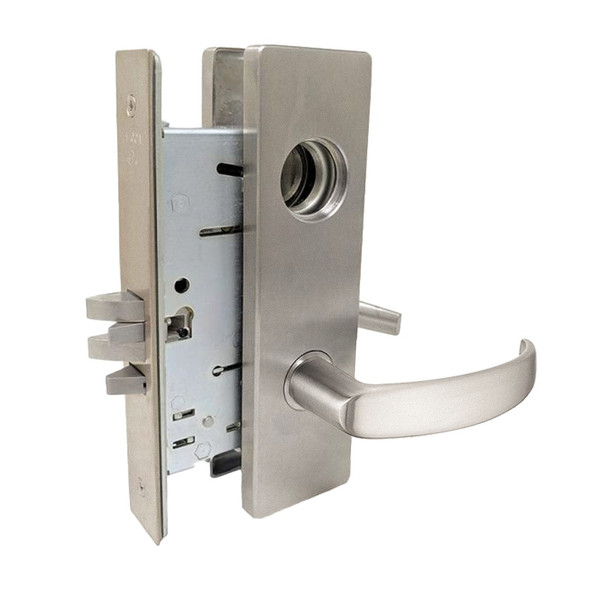

The Falcon MA561L DN 630 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. This durable, affordable lock combines security with interchangeable core technology for quick re-keying, solving the need for reliable access control without frequent lock replacement in demanding institutional settings.
Compatible with SFIC products and field-reversible for both right and left hand applications, this lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks offers expert configuration guidance and keying support via sales@edlocks.com or 1-877-207-6067 to ensure proper installation and long-term performance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561L DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin options
- Keyways: G keyway (standard), A keyway (interchangeable core)
- Faceplates: 1-1/4" x 8", brass or stainless steel
- Finish: DN 630 (Satin Stainless Steel)
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
- Electrified: Available in 12 or 24 VDC
