Description

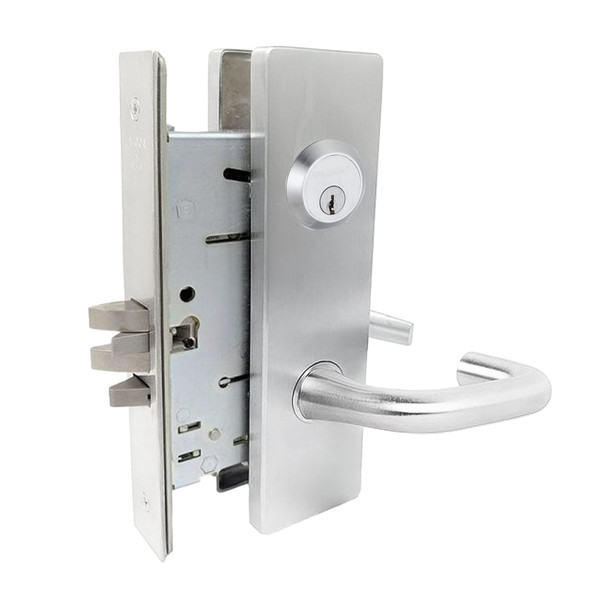

The Falcon MA561P mortise lock delivers high performance security for commercial office, hospital, and education facilities. Built tough for constant use, this ANSI/BHMA Series 1000 lock features a stainless steel latch bolt with mechanical anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers. The interchangeable core design enables quick re-keying without removing the lock from the door.
Compatible with standard door thicknesses of 1-3/8" to 2-1/2" and SFIC products from other manufacturers, this Falcon lock installs with confidence. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Falcon dealer, E.D. Locks provides expert support to ensure proper selection and installation. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for technical guidance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA561P
- Finish: Satin Nickel (625)
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: 3/4" projection, two-piece stainless steel, mechanical anti-friction
- Dead Bolt: 1" throw, stainless steel with hardened steel saw-resistant rollers (13/16" diameter)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyway: "G" standard cylinder, "A" interchangeable core
- Keys: Two nickel silver keys standard
- Handing: Right-hand standard, left-hand optional, reversible in field
- Strike: Brass or stainless steel, non-handed, meets ANSI A115.1
- Electrified Options: 12 or 24 VDC available
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
