Description

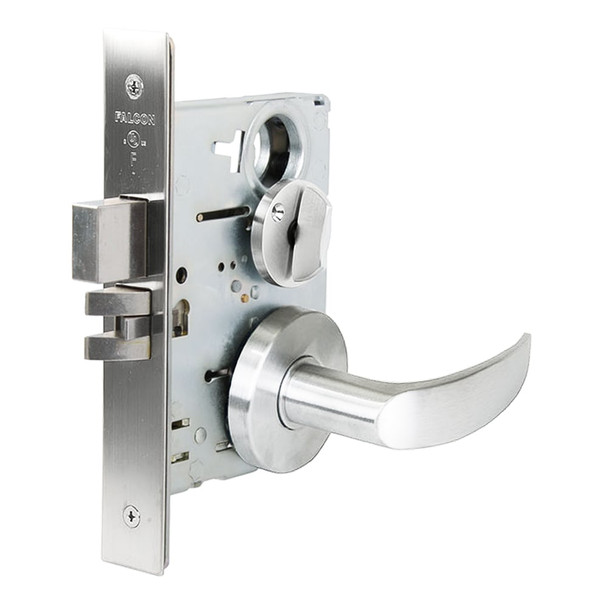

The Falcon MA571B AG 625 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. This durable lock combines security with reliability, featuring a two-piece stainless steel latch bolt, 1 inch dead bolt with saw-resistant rollers, and a cold-formed steel case designed to withstand constant use without compromise.
The MA571B accommodates door thickness from 1-3/8 inch to 2-1/2 inch with a 2-3/4 inch backset and includes an interchangeable core for quick re-keying compatible with SFIC products. It meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label ratings. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying, handing options, or electrified configurations.
Specifications
- Door Thickness: 1-3/8 inch to 2-1/2 inch
- Backset: 2-3/4 inch
- Case: Cold formed steel, zinc dichromate plated, 0.090 inch thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6, or 7-pin available on standard cylinders; 6 or 7-pin on interchangeable core cylinder
- Keys: Two nickel silver keys standard
- Keyways: G keyway on standard cylinder; A keyway on IC cylinder
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4 inch projection
- Dead Bolt: 1 inch throw, stainless steel with two 13/16 inch hardened steel saw-resistant rollers
- Faceplates: 1-1/4 inch x 8 inch, brass or stainless steel, adjustable for door bevel
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label, ANSI A115.1 strike
