Description

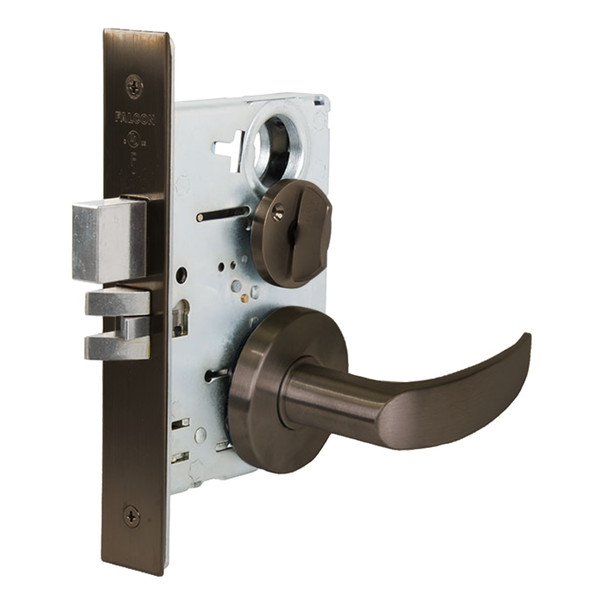

The Falcon MA571B AG 613 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. This durable lock combines security with reliability, featuring an interchangeable core (SFIC) for fast re-keying and compatibility with other manufacturers' products. Built by Allegion, it handles constant use without compromise.
Fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset. The MA Series includes a stainless steel deadbolt with saw-resistant rollers, anti-friction latch, and field-reversible handing. Electrified options (12/24 VDC) are available. As an authorized Falcon dealer, E.D. Locks provides expert specification guidance and keying support. Contact sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Cylinders: Solid brass, 5/6/7-pin standard; 6/7-pin I/C available
- Keyways: G-keyway (standard cylinder), A-keyway (I/C cylinder)
- Handing: Right hand standard, left hand optional, field reversible
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
- Electrified: 12 or 24 VDC available
