Description

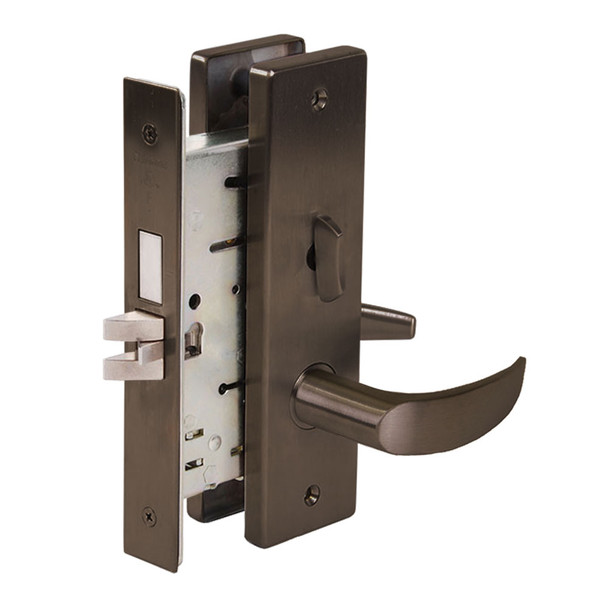

The Falcon MA571B AN 613 is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. This dependable lock delivers security and performance at an affordable price, engineered to withstand constant daily use without failure. Its interchangeable SFIC core simplifies re-keying and maintenance across your facility.
The MA571B fits standard door thickness of 1-3/8" to 2-1/2" with a 2-3/4" backset. It features a 1" stainless steel deadbolt with saw-resistant rollers, 3/4" latch projection, and meets ANSI/BHMA Series 1000 and UL 3-hour A label requirements. As an authorized Falcon dealer, E.D. Locks offers expert guidance on handing, keying, and electrified options. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon
- Model: MA571B AN 613
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt: 1" throw, stainless steel with two 13/16" diameter hardened steel, free-turning, saw-resistant rollers
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Cylinders: Solid brass cylinder and plug, 5, 6 or 7-pin available on standard cylinders; 6 or 7-pin on interchangeable core
- Keyway: "G" keyway standard on standard cylinder, "A" keyway standard on I/C cylinder
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, meets ANSI A115.1
- ANSI/BHMA: Meets ANSI/BHMA 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: Available in 12 or 24 VDC
- Includes: Two nickel silver keys, thread sealant
