Description

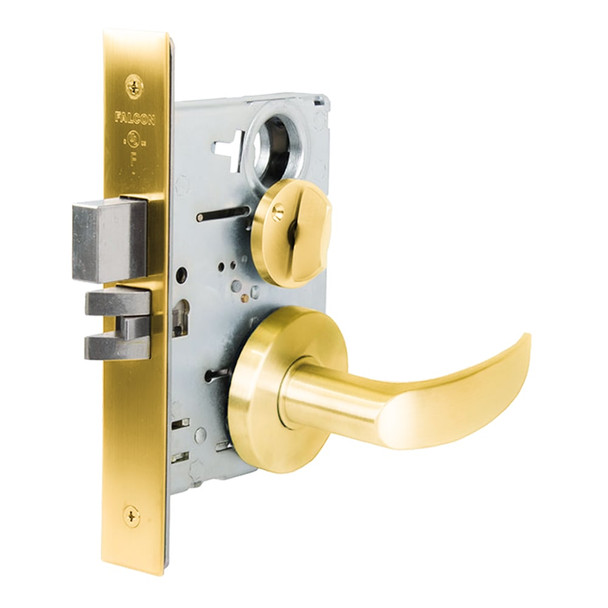

The Falcon MA571CP6 AG 605 is a heavy-duty mortise lock designed for commercial environments including offices, hospitals, and educational facilities. Built to withstand constant use, this Series 1000 lock combines security with reliability and features an interchangeable core (IC) for quick re-keying without removing the lock body.
The MA571CP6 fits standard door thicknesses from 1-3/8" to 2-1/2" and accepts SFIC cylinders from other manufacturers, simplifying maintenance and re-keying across multi-brand installations. As an authorized E.D. Locks dealer, we provide expert guidance on handing, keying, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for custom configurations and fast shipping on orders over $450.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571CP6 AG 605
- Type: Mortise Lock, 6-Pin Interchangeable Core
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold Formed Steel, Zinc Dichromate Plated, 0.090" Thick
- Hubs: Hardened Steel
- Handing: Right Hand Standard; Left Hand Optional; Reversible
- Cylinder: Solid Brass, 6-Pin IC Standard
- Keyway: A Keyway (IC Standard)
- Keys Furnished: Two Nickel Silver Keys
- Latch Bolt: Two-Piece Stainless Steel, 3/4" Projection
- Dead Bolt: 1" Throw Stainless Steel with Saw-Resistant Rollers
- Faceplate: 1-1/4" x 8" Brass or Stainless Steel, Armored
- Strike: Brass or Stainless Steel, Non-Handed
- Electrified: Available in 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 Hour A Label
