Description

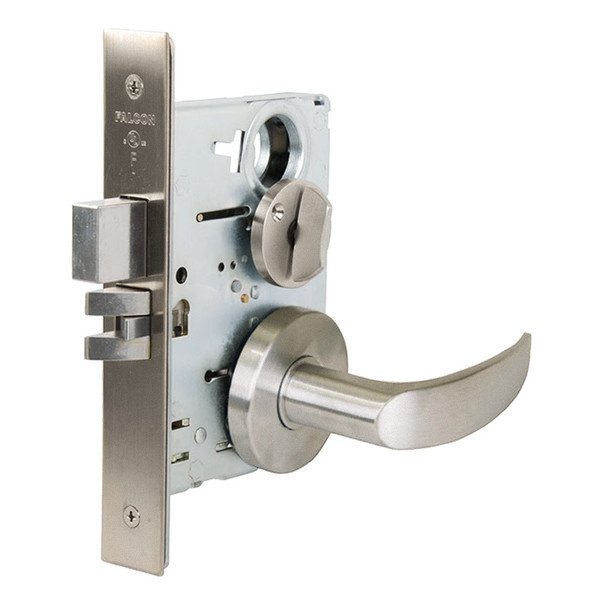

The Falcon MA571CP6 AG 630 mortise lock is a heavy-duty commercial security solution for offices, hospitals, educational facilities, and other high-traffic environments. It delivers dependable performance with an interchangeable core design that simplifies re-keying and retrofit installations while maintaining the toughness needed for constant daily use.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and features a 1" stainless steel deadbolt with saw-resistant rollers plus a 3/4" latch projection. It is reversible in the field and compatible with SFIC cylinders. As an authorized Falcon dealer, E.D. Locks offers expert guidance on keying options, finish selection, and electrified configurations. Contact sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571CP6 AG 630
- Lock Type: Mortise, ANSI/BHMA 156.13 Series 1000
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Deadbolt: 1" throw, stainless steel with hardened steel rollers
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Cylinders: Solid brass, 5/6/7-pin standard or interchangeable core
- Keyways: G (standard cylinder), A (I/C cylinder)
- Handing: Right hand standard, left hand optional, reversible
- Finish: Satin Stainless Steel (630)
- Electrified Options: 12 or 24 VDC available
- UL Rating: 3 hour A label
- Keys Furnished: Two nickel silver keys standard
