Description

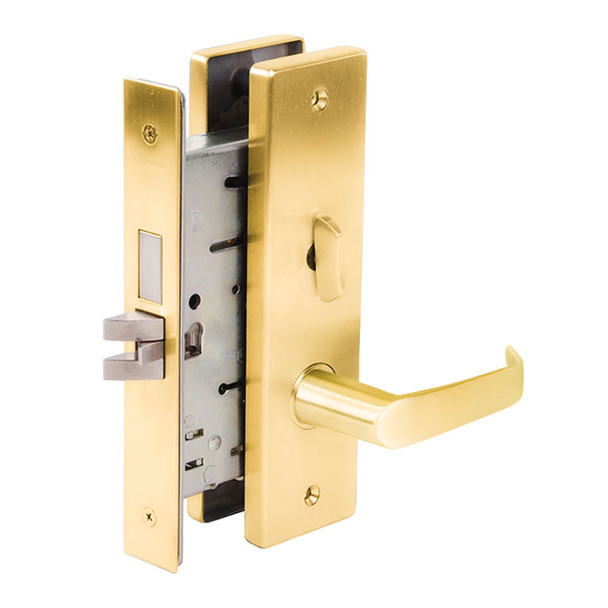

The Falcon MA Series mortise lock is a heavy-duty, dependable choice for commercial buildings including offices, hospitals, and educational facilities. Built to withstand constant use without fail, this lock combines security with affordability and features an interchangeable core (SFIC-compatible) for quick re-keying and maintenance.
The MA571CP6 DN 605 fits standard 1-3/8" to 2-1/2" door thickness with a 2-3/4" backset and is reversible in the field for flexible installation. An authorized E.D. Locks dealer provides expert keying advice, compatibility verification, and ongoing support—contact sales@edlocks.com or call 1-877-207-6067 for guidance on your project requirements.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional, reversible
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G (standard cylinder), A (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Strike: Brass or stainless steel, non-handed
- Electrified: Available 12 or 24 VDC
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
