Description

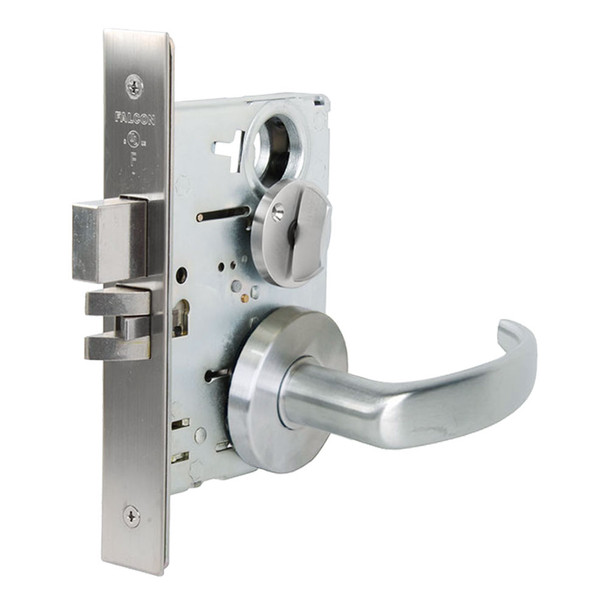

The Falcon MA571CP6 is a heavy-duty mortise lock built for commercial office, hospital, and education facilities that demand reliable security and durability. It features a 1-inch throw deadbolt with saw-resistant rollers and a 3/4-inch latch bolt, designed to withstand constant use in high-traffic environments without failure.
This lock accommodates doors 1-3/8" to 2-1/2" thick with a 2-3/4" backset and uses SFIC interchangeable cores for quick re-keying. It meets ANSI/BHMA Series 1000 and carries a 3-hour UL label. Contact our team at sales@edlocks.com or 1-877-207-6067 for expert guidance on keying options, handing, and electrified configurations.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Deadbolt Throw: 1" stainless steel with hardened steel rollers
- Latch Bolt: 3/4" projection, two-piece stainless steel
- Cylinders: 5, 6, or 7-pin standard; 6 or 7-pin SFIC available
- Keyways: "G" standard cylinder, "A" standard SFIC
- Faceplate: 1-1/4" x 8" brass or stainless steel, armored
- Handing: Right hand standard; left hand and field-reversible
- ANSI/BHMA: Series 1000
- UL: 3 hour A label
- Electrified: 12 or 24 VDC available
