Description

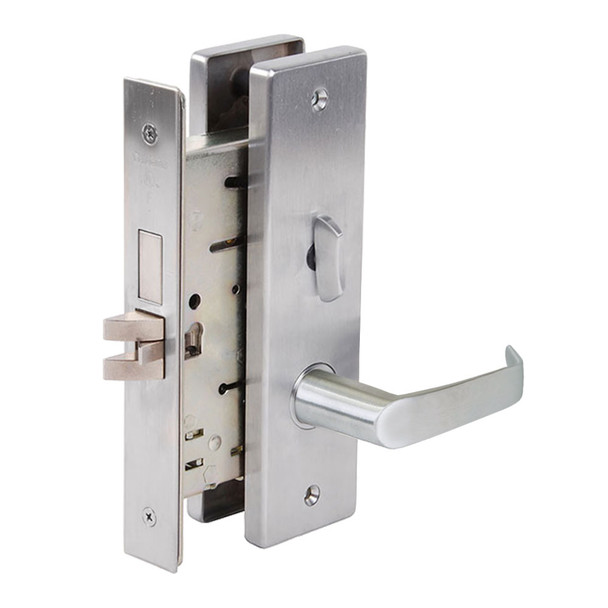

The Falcon MA Series mortise lock delivers dependable security for commercial offices, hospitals, educational facilities, and institutional buildings. Built tough for constant use, this Series 1000 lock combines affordability with proven performance and features an interchangeable core for quick re-keying without removing the lock body.
The DN 626 finish accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset. SFIC-compatible cylinders accept 5, 6, or 7-pin keys. As an authorized Falcon dealer, E.D. Locks provides expert selection and keying guidance. Contact our team at sales@edlocks.com or 1-877-207-6067 to confirm finish options, handing, and electrified capabilities for your project.
Specifications
- Brand: Falcon
- Model: MA571CP6 DN 626
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinder: Solid brass, 5, 6, or 7-pin available
- Keyways: G keyway standard (A keyway on IC cylinder)
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Handing: Right hand standard, left hand optional, reversible
- ANSI/BHMA: Meets 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: Available in 12 or 24 VDC
