Description

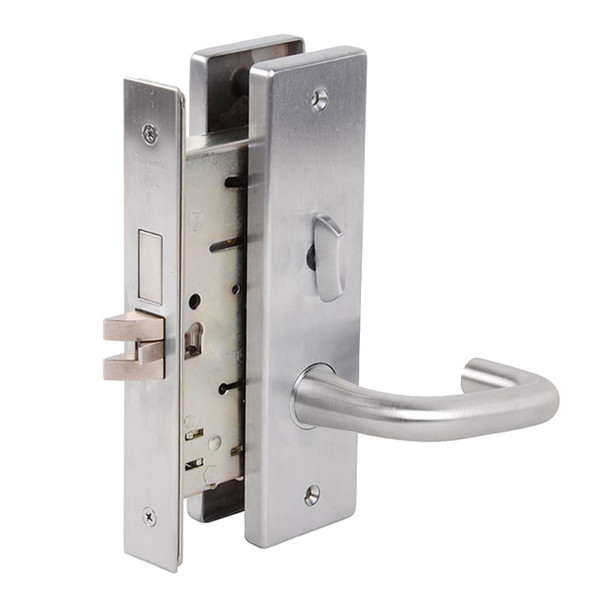

The Falcon MA571CP6 is a commercial-grade mortise lock engineered for high-traffic office, hospital, and educational facilities. Its two-piece stainless steel latch, saw-resistant roller deadbolt, and cold-formed steel case deliver durability and security in constant-use environments. The interchangeable core (SFIC-compatible) simplifies re-keying and maintenance.
This lock accommodates standard door thicknesses from 1-3/8" to 2-1/2" and features a 2-3/4" backset. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL label. As an authorized Allegion dealer, E.D. Locks provides expert specification support and keying guidance—contact sales@edlocks.com or 1-877-207-6067 to ensure the right fit for your project.
Specifications
- Brand: Falcon
- Model: MA571CP6
- Finish: Satin Nickel (626)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, stainless steel
- Deadbolt: 1" throw with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, .090" thick
- Cylinders: Solid brass, 6-pin standard
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified: Available 12 or 24 VDC
