Description

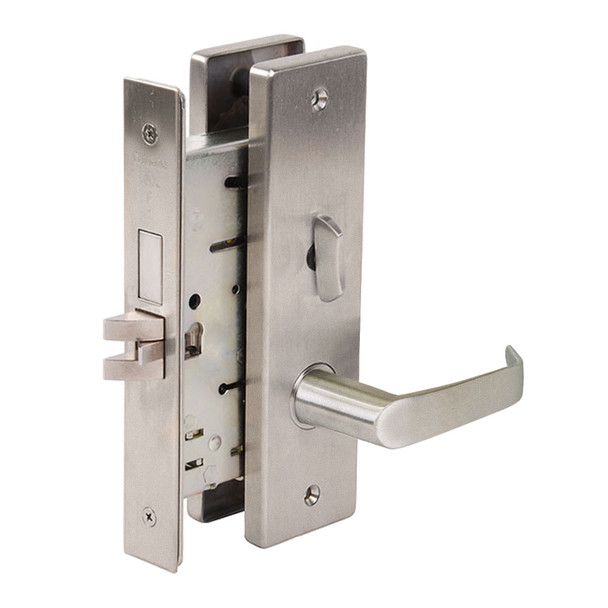

The Falcon MA571CP6 DN 630 is a commercial mortise lock engineered for high-traffic office, hospital, and education facilities. Built with cold-formed steel and hardened steel components, this dependable lock resists constant use and wear while offering both latch and deadbolt security with saw-resistant rollers and mechanical anti-friction design.
The interchangeable core (SFIC-compatible) enables quick re-keying without removing the lock body, and reversible handing accommodates most door preparations. As an authorized Falcon dealer, E.D. Locks offers expert guidance on cylinder options, finish selection, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for compatibility verification and fast delivery on your commercial project.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571CP6 DN 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" (standard cylinder) or "A" (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw with two 13/16" saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored
- Handing: Right standard, left hand optional, reversible
- Electrified: 12 or 24 VDC available
- ANSI/BHMA: Series 1000 (156.13)
- UL: 3 hour A label
- Includes: Two nickel silver keys
