Description

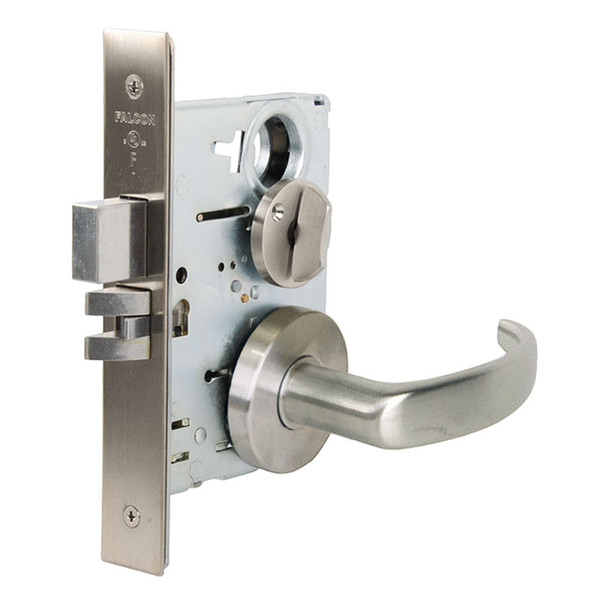

The Falcon MA571CP6 is a commercial mortise lock engineered for high-traffic office, hospital, and educational facilities. Built from cold-formed steel with hardened-steel hubs and a two-piece stainless-steel latch bolt, it delivers dependable security and durability through constant daily use. The interchangeable core design allows quick re-keying without removing the lock body.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and is reversible in the field for right or left-hand installation. Compatible with SFIC products from other manufacturers, it meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying options, finish selection, and electrification guidance.
Specifications
- Brand: Falcon
- Model: MA571CP6 QG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 6-pin interchangeable core standard
- Keyway: G keyway (standard cylinder), A keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" armored, brass or stainless steel
- Strike: Brass or stainless steel, meets ANSI A115.1
- Electrified: Available in 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right-hand standard, left-hand optional, reversible
- Includes: Two nickel-silver keys, thread sealant
