Description

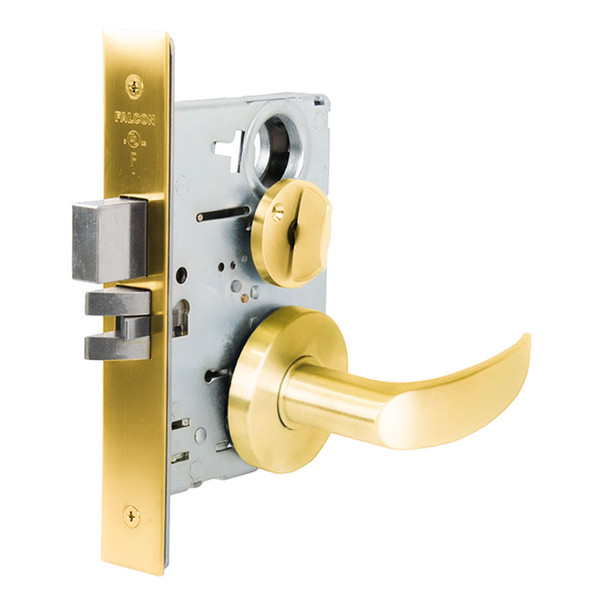

The Falcon MA571L AG 605 is a commercial-grade mortise lock engineered for offices, hospitals, schools, and other high-traffic facilities. Built on Falcon's reputation for durability, this lock withstands constant use without compromise. The interchangeable core design enables quick, tool-free re-keying and works with SFIC products from other manufacturers, reducing downtime and maintenance costs.
Standard door thickness accommodation is 1-3/8" to 2-1/2" with a 2-3/4" backset. The lock features a stainless steel latch bolt with 3/4" projection and a 1" throw deadbolt with saw-resistant rollers. Available in electrified versions (12 or 24 VDC) and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A standards. Contact an authorized E.D. Locks dealer at 1-877-207-6067 or sales@edlocks.com for keying options, finish selection, and expert installation guidance.
Specifications
- Brand: Falcon
- Model: MA571L AG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass; 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw stainless steel with hardened steel rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Handing: Right hand standard; left hand optional, reversible in field
- Keys: Two nickel silver keys furnished standard
