Description

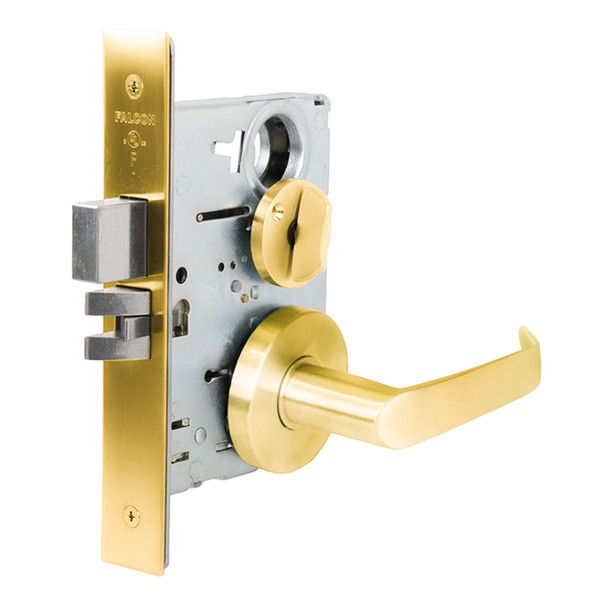

The Falcon MA571L DG 605 is a high-performance mortise lock built for commercial environments including offices, hospitals, and educational facilities. Its interchangeable core design enables quick, tool-free re-keying and is compatible with SFIC products from other manufacturers, making it ideal for properties requiring flexible key management and frequent access updates.
This lock accommodates door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards. For expert guidance on keying options, finishes, and electrified function availability, contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 to ensure the perfect fit for your project.
Specifications
- Brand: Falcon
- Model: MA571L DG 605
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin available on standard cylinders; 6 or 7-pin on interchangeable core cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Finishes: Multiple options including satin stainless steel (finish 605)
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3 hour A label
- Electrified Functions: Available 12 or 24 VDC
- Handing: Right hand standard; left hand optional, reversible in field
