Description

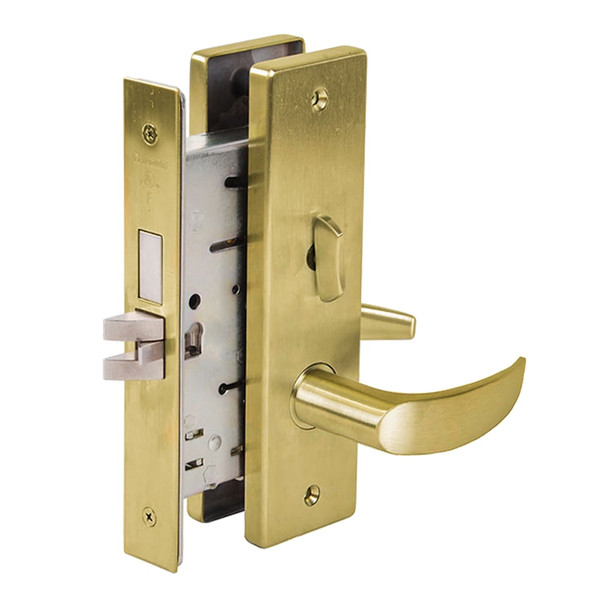

The Falcon MA571L mortise lock delivers high-performance security for commercial office, hospital, and education facilities. Built for constant use, this Series 1000 lock features a stainless steel latch bolt with anti-friction design and a 1-inch throw dead bolt with saw-resistant rollers, solving durability and reliability challenges in high-traffic environments.
The interchangeable core (SFIC) design enables quick re-keying without removing the lock from the door, and it's compatible with cores from other manufacturers. Fits standard door thickness 1-3/8" to 2-1/2" with 2-3/4" backset. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, handing, and electrified configurations. Contact sales@edlocks.com or call 1-877-207-6067 for assistance selecting the right cylinder pins and keyway for your security needs.
Specifications
- Brand: Falcon
- Model: MA571L AN 606
- Lock Type: Mortise, Series 1000
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyways: "G" standard cylinder, "A" interchangeable core
- Finish: AN (Satin Chrome)
- Handing: Right hand standard, left hand optional, reversible
- Faceplate: 1-1/4" x 8" brass or stainless steel
- ANSI/BHMA: 156.13, Series 1000
- UL: 3 hour A label
- Voltage Options: 12 or 24 VDC electrified versions available
