Description

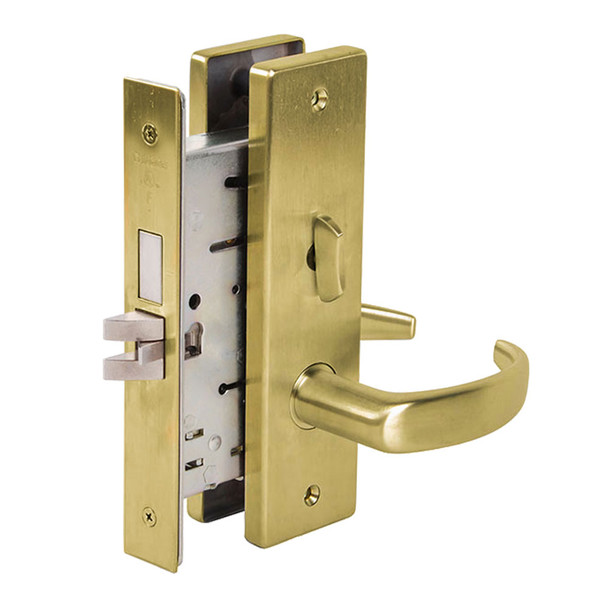

The Falcon MA571L mortise lock delivers high-performance security for commercial applications including offices, hospitals, and educational facilities. Built for constant use, this heavy-duty lock features a mechanical anti-friction latch, saw-resistant roller deadbolt, and interchangeable core for quick re-keying without removing the lock from the door.
Compatible with SFIC products and standard door thicknesses of 1-3/8" to 2-1/2" with 2-3/4" backset. Right-hand handing is standard; left-hand and field-reversible options available. As an authorized Falcon dealer, E.D. Locks provides expert keying guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper installation and specification.
Specifications
- Brand: Falcon
- Model: MA571L QN 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard, left hand optional, reversible in field
- Cylinders: Solid brass, 5, 6 or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard cylinder, A keyway I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with 13/16" saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Finishes: Satin Chrome (606)
- ANSI/BHMA: Series 1000
- UL Rating: 3 hour A label
- Electrified Options: 12 or 24 VDC available
