Description

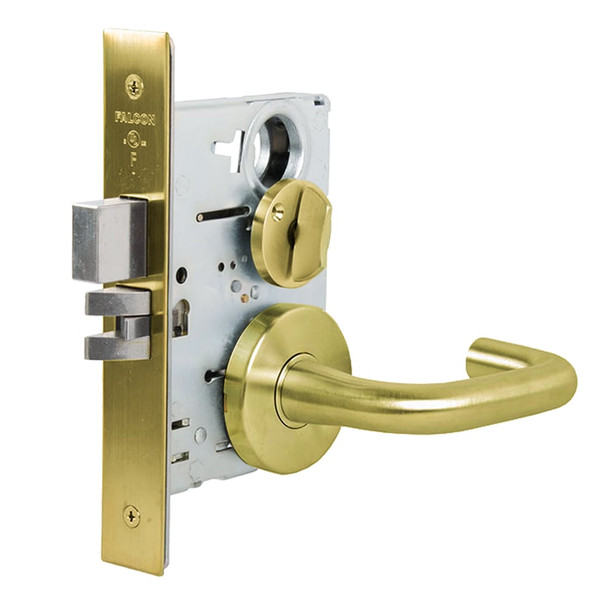

The Falcon MA571L SG 606 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This dependable lock combines security with durability, featuring a two-piece stainless steel latch bolt and a 1-inch dead bolt with saw-resistant rollers. The interchangeable core design enables quick re-keying without removing the lock from the door.
Built to accommodate door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset, this ANSI/BHMA Series 1000 lock meets UL 3-hour label standards and is compatible with SFIC cylinders. Right-hand handing is standard; left-hand is available and field-reversible. As an authorized Falcon dealer, E.D. Locks offers expert guidance on specification, keying, and electrified options. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for assistance.
Specifications
- Brand: Falcon
- Model: MA571L SG 606
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right hand standard; left hand optional; field-reversible
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway standard; A keyway on I/C cylinder
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Strike: Brass or stainless steel, non-handed
- Electrified: 12 or 24 VDC available
- Standard: ANSI/BHMA 156.13 Series 1000
- UL Rating: 3-hour A label
- Keys Furnished: Two nickel silver keys standard
