Description

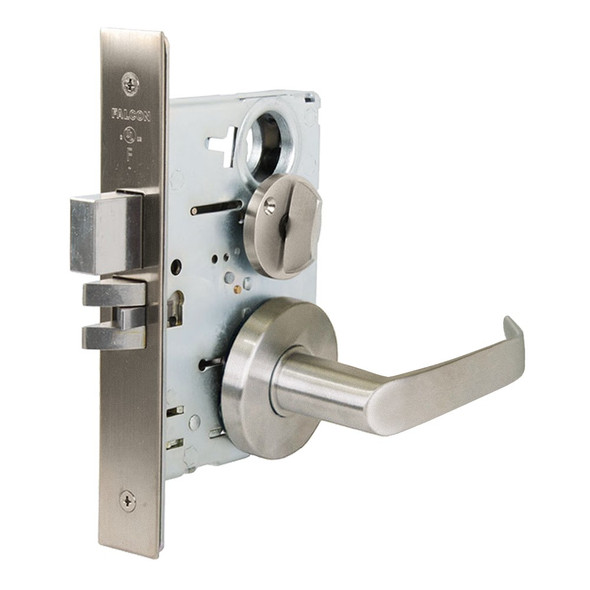

The Falcon MA571L DG 626 is a commercial mortise lock engineered for offices, hospitals, schools, and other high-traffic facilities. Built from cold-formed steel with hardened steel hubs, this ANSI/BHMA Series 1000 lock delivers dependable security and durability through constant daily use without compromise.
The MA571L features an interchangeable core (SFIC-compatible) for fast re-keying, accommodates door thicknesses from 1-3/8" to 2-1/2", and comes standard with a 2-3/4" backset and right-hand handing (left-hand optional, field-reversible). Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for expert keying, finish, and electrification guidance.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571L DG 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold-formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Handing: Right-hand standard; left-hand optional, field-reversible
- Cylinders: Solid brass, 5, 6, or 7-pin (standard) or 6, 7-pin (interchangeable core)
- Keyways: G-keyway (standard cylinder); A-keyway (I/C cylinder)
- Latch Bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead Bolt: 1" throw stainless steel with two 13/16" hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Functions: Available 12 or 24 VDC
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3-hour A label
