Description

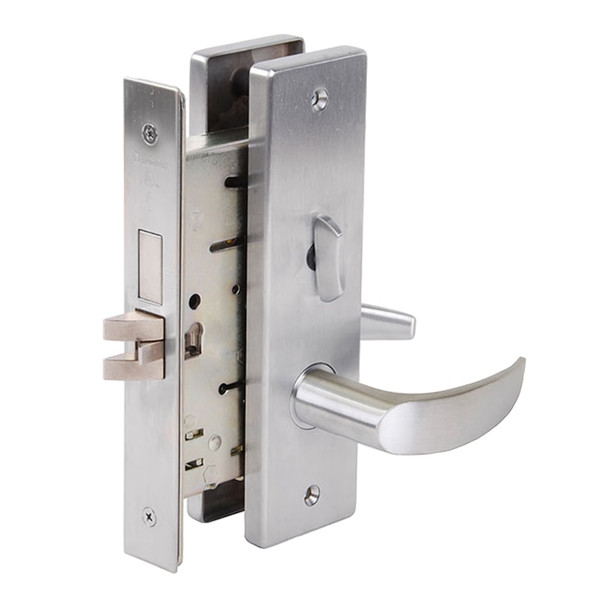

The Falcon MA571L is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This tough, dependable lock delivers security and reliability through constant use, featuring an interchangeable core for quick re-keying and SFIC compatibility across manufacturers. The two-piece stainless steel latch and hardened steel roller deadbolt resist saw attacks and binding.
The MA571L fits standard door thickness 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards plus UL 3-hour A rating. Available in electrified 12 or 24 VDC versions. As an authorized Falcon dealer, E.D. Locks offers expert guidance on handing, keyways, and cylinder options. Contact sales@edlocks.com or call 1-877-207-6067 for specifications and keying assistance.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Keyways: G keyway (standard cylinder), A keyway (interchangeable core)
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8", brass or stainless steel, adjustable
- Electrified: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
