Description

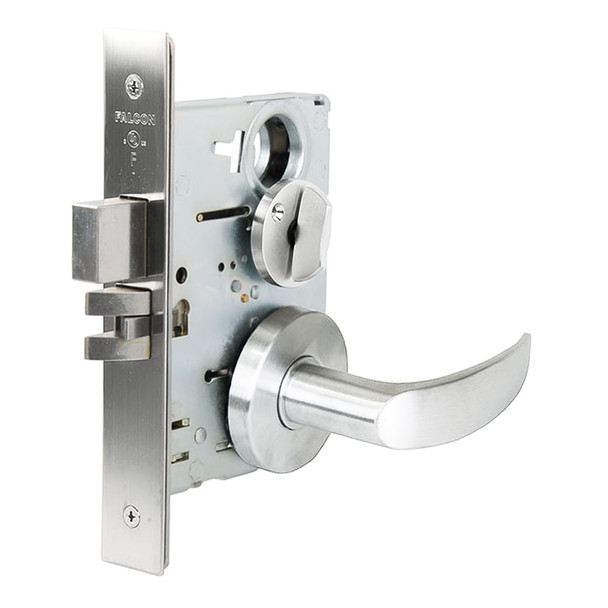

The Falcon MA571P AG 625 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. It combines robust security with affordability, featuring a two-piece stainless steel latch bolt and 1-inch dead bolt with saw-resistant rollers. Built to withstand constant use, this lock delivers dependable performance for retrofit projects and new installations.
This lock accommodates door thickness from 1-3/8" to 2-1/2" and features an interchangeable core (SFIC) for quick re-keying without removing the lock body. It meets ANSI/BHMA 156.13 Series 1000 and carries a 3-hour UL A label rating. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and compatibility. Contact our sales team at 1-877-207-6067 or sales@edlocks.com for personalized support.
Specifications
- Brand: Falcon
- Model: MA571P AG 625
- Lock Type: Mortise
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch Bolt: 3/4" projection, stainless steel
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinder: Solid brass, 6 or 7-pin interchangeable core
- Keyway: A keyway standard on I/C cylinder
- Finish: Satin Chrome (AG)
- Handing: Right hand standard; left hand optional, reversible in field
- ANSI/BHMA Rating: Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: Available in 12 or 24 VDC
