Description

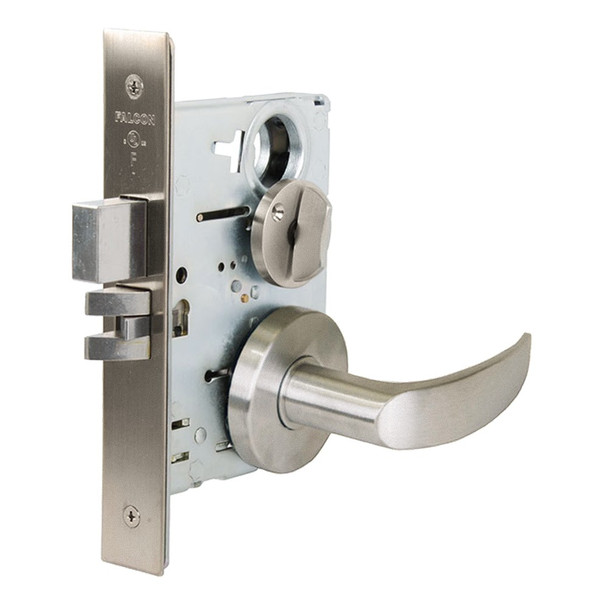

The Falcon MA571P AG 630 is a heavy-duty mortise lock engineered for commercial environments including offices, hospitals, and educational facilities. Built for constant use without failure, this lock combines reliable security with the convenience of an interchangeable core (SFIC) that allows quick re-keying in the field. It delivers institutional-grade performance at an accessible price point.
Compatible with standard door thicknesses from 1-3/8" to 2-1/2" and equipped with a 2-3/4" backset, this lock features a stainless steel dead bolt with saw-resistant rollers and mechanical anti-friction latch. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Falcon dealer, E.D. Locks offers expert installation guidance and keying support. Contact sales@edlocks.com or 1-877-207-6067 for compatibility verification and detailed technical assistance.
Specifications
- Brand: Falcon
- Model: MA571P AG 630
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with 13/16" diameter hardened steel saw-resistant rollers
- Faceplate: 1-1/4" x 8" stainless steel, adjustable for door bevel
- Strike: Stainless steel, meets ANSI A115.1
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on SFIC
- Keyways: G keyway standard; A keyway on I/C cylinder
- Finish: Satin Stainless (AG)
- Handing: Right-hand standard; left-hand and field-reversible options available
- Certifications: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified Functions: Available in 12 or 24 VDC
