Description

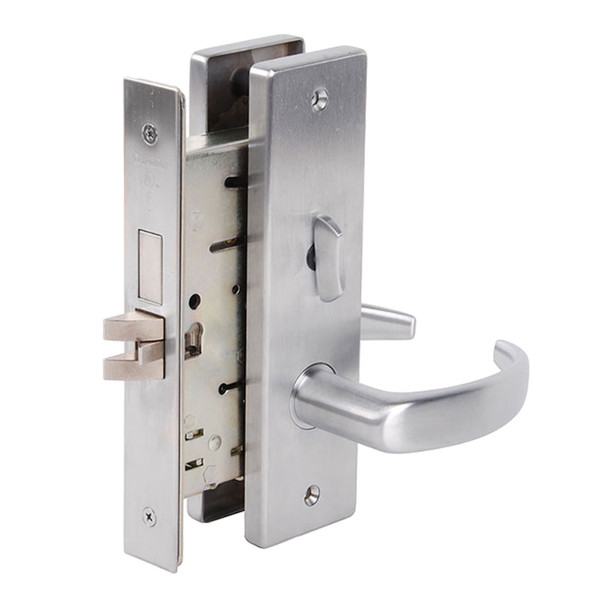

The Falcon MA571P QN 626 is a commercial mortise lock engineered for high-traffic office, hospital, and education environments. This interchangeable core lock combines dependable security with easy field re-keying, eliminating costly locksmith callbacks. Built tough with stainless steel bolts, hardened steel rollers, and heavy-duty through-bolted trim, it handles constant use without compromise.
The MA571P fits standard 1-3/8" to 2-1/2" door thickness with a 2-3/4" backset and meets ANSI/BHMA Series 1000 and UL 3-hour standards. SFIC-compatible cores accept 5, 6, or 7-pin cylinders for flexible keying. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for keying options, finish selection, or electrified function availability to ensure perfect fit for your project.
Specifications
- Brand: Falcon
- Model: MA571P QN 626
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Handing: Right hand standard; left hand optional, field reversible
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Stainless steel, 3/4" projection
- Deadbolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keyway: G (standard cylinder) or A (interchangeable core)
- Keys: Two nickel silver keys standard
- Faceplates: 1-1/4" x 8" brass or stainless steel, bevel-adjustable
- Strike: Brass or stainless steel, ANSI A115.1 compliant, non-handed
- Electrified Options: 12 or 24 VDC available
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
