Description

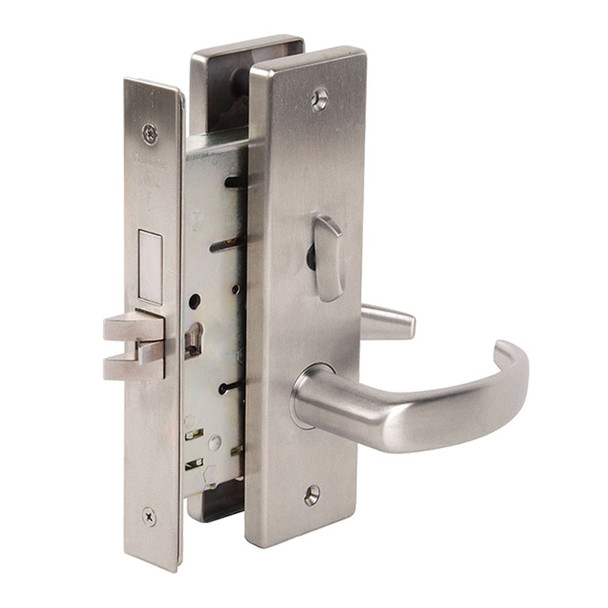

The Falcon MA571P is a commercial mortise lock engineered for offices, hospitals, schools, and high-traffic facilities. Built on a reputation for durability and dependability, this Series 1000 lock delivers reliable security and withstands constant use. Its interchangeable core (SFIC-compatible) enables quick re-keying without removing the lock from the door.
The MA571P fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset, and is reversible in the field for either hand. As an authorized Falcon distributor, E.D. Locks provides expert guidance on keying options, finish selection, and electrified configurations. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for detailed specifications and competitive pricing.
Specifications
- Brand: Falcon (Allegion)
- Model: MA571P QN 630
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4" only
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin on I/C
- Keyways: G keyway (standard cylinder), A keyway (I/C cylinder)
- Handing: Right hand standard, left hand optional, field-reversible
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for bevel
- Electrified: 12 or 24 VDC available
- Furnished: Two nickel silver keys
