Description

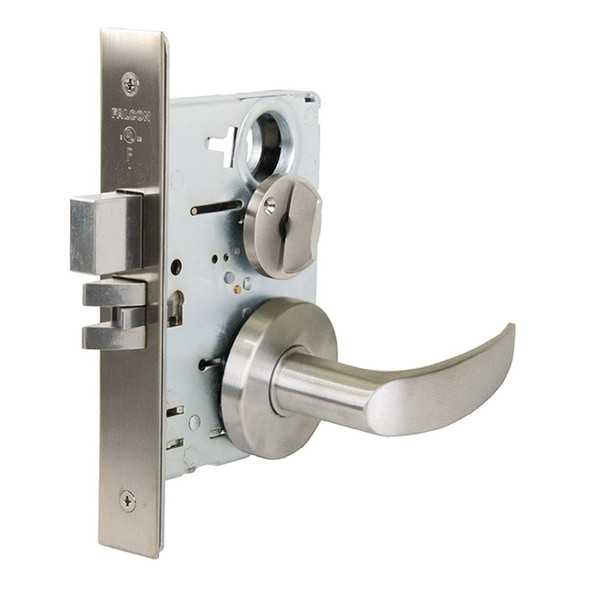

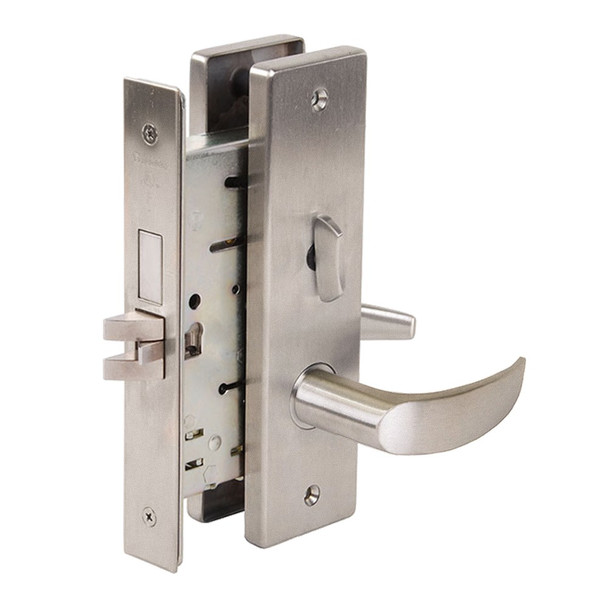

The Falcon MA571P AN 630 is a commercial mortise lock engineered for offices, hospitals, educational facilities, and high-traffic environments. It combines robust security with dependable performance, featuring a two-piece stainless steel latch bolt, 1-inch dead bolt with saw-resistant rollers, and interchangeable core (IC) technology for quick re-keying without removing the lock from the door.
This lock accommodates standard door thicknesses of 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 and UL 3-hour A label requirements. Compatible with SFIC products from other manufacturers, it comes standard in right-hand configuration with reversible field handing. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying options, finishes, and electrified configurations—contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Door thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Latch bolt: Two-piece stainless steel, mechanical anti-friction, 3/4" projection
- Dead bolt: 1" throw, stainless steel with hardened steel saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, armored front
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin IC
- Keyways: G (standard cylinder), A (IC cylinder)
- Handing: Right hand standard, left hand optional, reversible in field
- Electrified: Available 12 or 24 VDC
- Certification: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
