Description

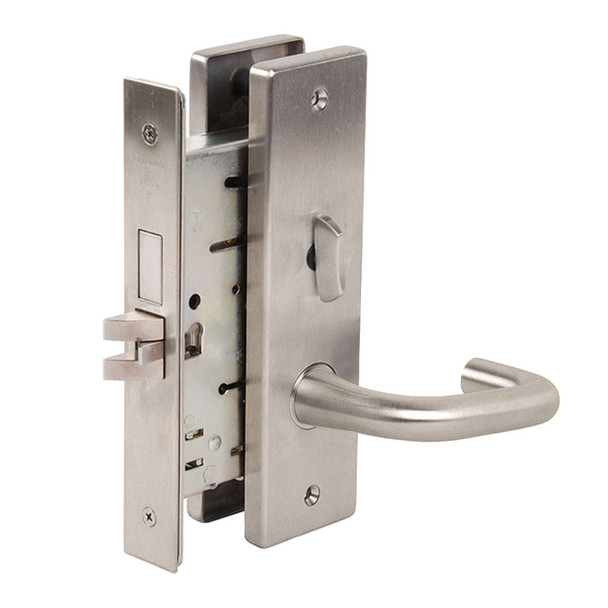

The Falcon MA571P is a heavy-duty mortise lock built for commercial environments including offices, hospitals, and educational facilities. It combines security with reliability, engineered to withstand constant daily use without compromising performance. The interchangeable core design enables quick re-keying without removing the lock from the door.
This lock fits standard door thicknesses from 1-3/8" to 2-1/2" with a 2-3/4" backset and meets ANSI/BHMA 156.13 Series 1000 standards and UL 3-hour A label requirements. It is compatible with SFIC cylinders and available in multiple configurations. Contact our expert team at sales@edlocks.com or 1-877-207-6067 for assistance selecting the right keying and finish for your project.
Specifications
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Cylinders: Solid brass, 5, 6, or 7-pin standard; 6 or 7-pin interchangeable core
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8" brass or stainless steel, adjustable for door bevel
- Standards: ANSI/BHMA 156.13 Series 1000, UL 3-hour A label
- Electrified Options: 12 or 24 VDC available
