Description

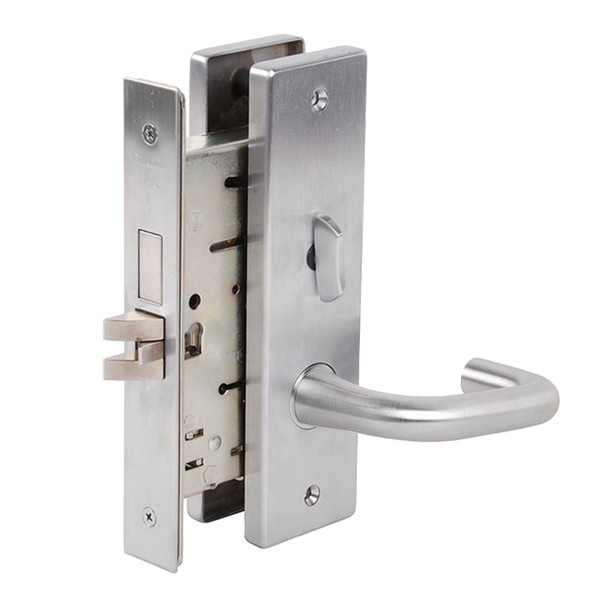

The Falcon MA571P mortise lock delivers dependable security for commercial offices, hospitals, educational facilities, and similar high-traffic environments. Built tough to withstand constant use, this Series 1000 ANSI/BHMA certified lock features a mechanical anti-friction latch, hardened steel hubs, and a 1-inch dead bolt with saw-resistant rollers for reliable performance.
Compatible with standard and interchangeable core (SFIC) cylinders, the MA571P accommodates doors 1-3/8" to 2-1/2" thick and features a 2-3/4" backset. Right-hand handing is standard; left-hand and field-reversible options are available. As an authorized Falcon dealer, E.D. Locks provides expert guidance on keying, installation, and compatibility. Contact sales@edlocks.com or call 1-877-207-6067 for personalized assistance.
Specifications
- Brand: Falcon
- Model: MA571P
- Finish: Satin Nickel (626)
- Door Thickness: 1-3/8" to 2-1/2"
- Backset: 2-3/4"
- Case: Cold formed steel, zinc dichromate plated, 0.090" thick
- Hubs: Hardened steel
- Latch Bolt: Two-piece stainless steel, 3/4" projection
- Dead Bolt: 1" throw, stainless steel with saw-resistant rollers
- Faceplates: 1-1/4" x 8", adjustable for door bevel
- Cylinders: Solid brass, 5/6/7-pin standard or 6/7-pin interchangeable core
- Keys: Two nickel silver keys included
- Keyways: G keyway (standard cylinder) or A keyway (IC cylinder)
- Handing: Right-hand standard, left-hand optional, field-reversible
- ANSI/BHMA: 156.13, Series 1000
- UL Rating: 3 hour A label
- Electrified Functions: Available in 12 or 24 VDC
