Description

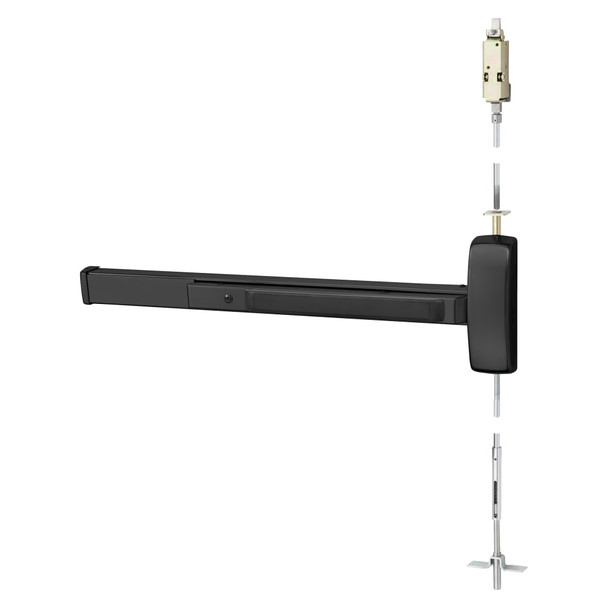

The Sargent 80 Series exit device is a heavy-duty panic hardware solution for commercial metal doors requiring Grade 1 security and reliability. Designed for facilities where durability and code compliance are non-negotiable, this rim-mounted device combines modular construction with minimal moving parts to deliver maintenance-free operation across the building's lifecycle.
This left-hand reverse (LHR) model fits metal doors 1-3/4" minimum thickness with 4-1/2" minimum stile width. Factory-cut rails accommodate door widths 24-48". Optional electric features include delayed egress, alarm, photoluminescent coating, and latch monitoring. Contact our authorized dealer team at sales@edlocks.com or 1-877-207-6067 for rail sizing, electric options, and installation guidance.
Specifications
- Brand: Sargent
- Model: MD8643F LHR 20D
- Configuration: Rim Mount, Left-Hand Reverse
- Door Thickness: 1-3/4" to 2-1/4"
- Minimum Stile Width: 4-1/2"
- Device Centerline: 41" from finished floor (38" for elementary schools)
- Center Case Dimensions: 8-3/8" x 2-5/8"
- Pushbar Projection (Neutral): 3"
- Pushbar Projection (Depressed): 2-1/8"
- Top Bolt: Stainless Steel
- Strike: 650 Top and 606 Bottom (Panic/Fire Rated)
- Rails: E (24-32" doors), F (33-36" doors), J (37-42" doors), G (43-48" doors)
- Dogging: Hex key standard on non-fire-rated versions
- Optional Electric Features: Alarm, Beacon, Photoluminescent coating, Illuminated touchpad, Latchbolt monitor, Outside lever monitoring, Request-to-exit signal, Remote latch retraction, Delayed egress, Electric dogging, Electroguard self-contained delayed egress
