Description

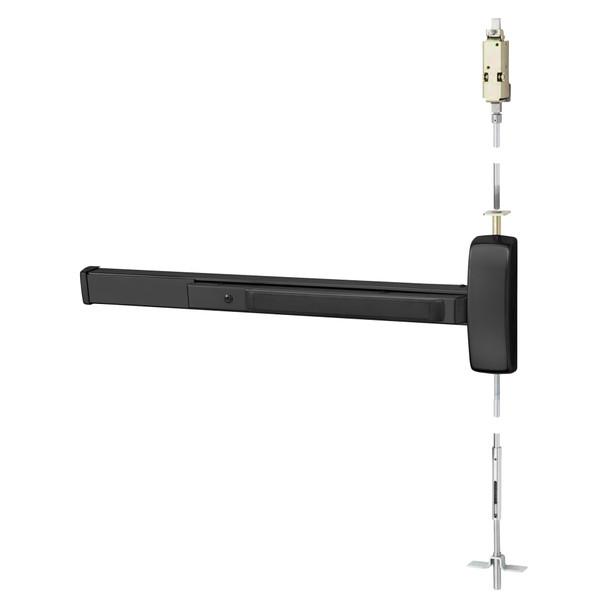

The Sargent 80 Series exit device is a heavy-duty panic bar solution for commercial metal doors requiring Grade 1 security and reliability. Designed for facilities that demand maintenance-free operation and superior durability, this left-hand reverse rim device exceeds ANSI/BHMA standards and is ideal for high-traffic entrances, fire-rated openings, and buildings where long-term performance is critical.
This model fits metal doors 1-3/4" to 2-1/4" thick and is available with E, F, J, or G rails depending on your door width (24" to 48"). Compatible with standard 650 top and 606 bottom strikes, the device supports optional electric features including alarm, photoluminescent coating, and delay egress. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert help selecting the right configuration and rail size for your application.
Specifications
- Brand: Sargent
- Model: 55-MD8646F LHR 20D
- Series: 80 Series
- Handedness: Left Hand Reverse
- Door Thickness: 1-3/4" to 2-1/4" (44mm to 57mm)
- Minimum Stile Width: 4-1/2" (114mm)
- Standard Rails: E (24"-32"), F (33"-36"), J (37"-42"), G (43"-48")
- Strikes: 650 Top, 606 Bottom
- Dogging: Hex key standard (non fire-rated); cylinder dogging available
- Device Centerline Height: 41" standard, 38" for schools
- Center Case: 8-3/8" x 2-5/8"
- Pushbar Projection: 3" neutral, 2-1/8" depressed
- Max Door Height: 96" (with HC/WS options)
- Rating: ANSI/BHMA Grade 1
- Fasteners: Machine screws, stainless steel top bolt
- Optional Features: Alarm (AL), Beacon (BT), Photoluminescent (PL), Illuminated Touchpad (TL), Latchbolt Monitor (53), Outside Lever Monitoring (54), Request-to-Exit Signal (55), Remote Latch Retraction (56), Delay Egress (57), Electric Dogging (58), Electroguard (59)
