Description
The Schlage ND10S is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, and retail environments. This non-handed lock accommodates door thicknesses from 1 5/8" to 2 1/8" and features a 1/2" steel deadlocking latch bolt, making it ideal for high-traffic applications demanding reliability and security.
The ND10S accepts standard 6-pin Everest 29 S123 keyway cylinders and supports master keying, grand master keying, and construction keying options. As an authorized Schlage dealer, E.D. Locks provides expert configuration assistance and genuine hardware backed by a ten-year limited warranty. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for keying guidance and installation support.
Specifications
- Brand: Schlage

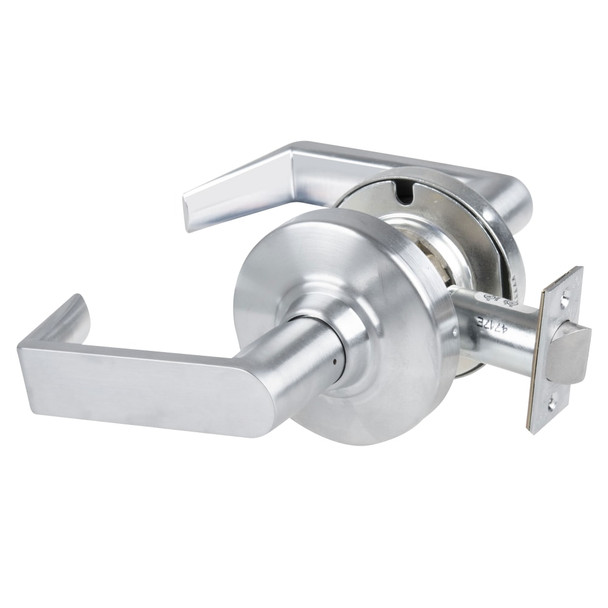

- Model: ND10S RHO 626 EE212
- Grade: 1 (3+ million cycle rating)
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Lock Chassis: Zinc plated
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver keys per lock
- Keying: Master, grand master, and construction keying available
- Strike: ANSI curved lip, 1 1/4" x 4 7/8" x 1 3/16" standard
- Warranty: Ten-year limited
