Description

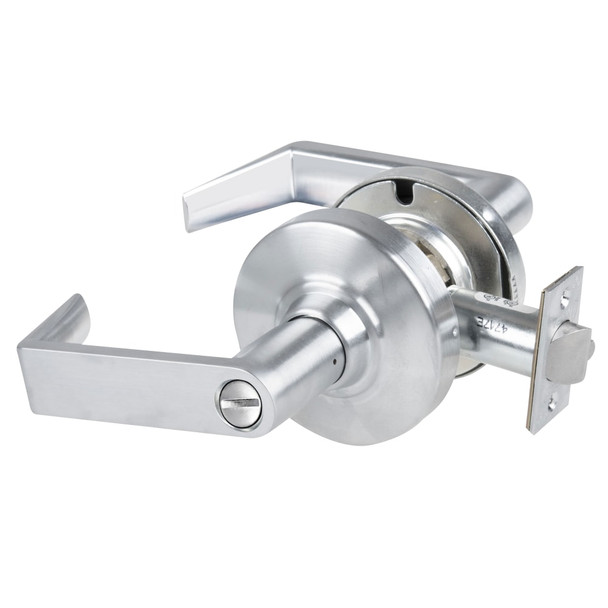

The Schlage ND40S is a Grade 1 cylindrical lockset designed for commercial facilities including healthcare, education, government, office and retail environments. This non-handed lock delivers proven reliability with a 3-million cycle rating and offers extensive function, keying and trim options to fit nearly any application.
Compatible with standard door thicknesses from 1 5/8" to 2 1/8" and featuring a 2 3/4" backset, the ND40S installs easily in most commercial setups. The 626 finish (satin chrome) and EE212 function provide durable performance with corrosion-resistant zinc-plated chassis. As an authorized Schlage dealer, E.D. Locks offers expert guidance on keying options and compatibility. Contact our sales team at sales@edlocks.com or 1-877-207-6067 for personalized support.
Specifications
- Grade: 1
- Cycles to Failure: 3,000,000+
- Door Thickness: 1 5/8" to 2 1/8" (41-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Latch Bolt: Steel, 1/2" (12mm) throw, deadlocking
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two patented nickel silver keys per lock
- Keying Options: Interchangeable core, Primus high security, master keying available
- Warranty: 10-year limited
