Description

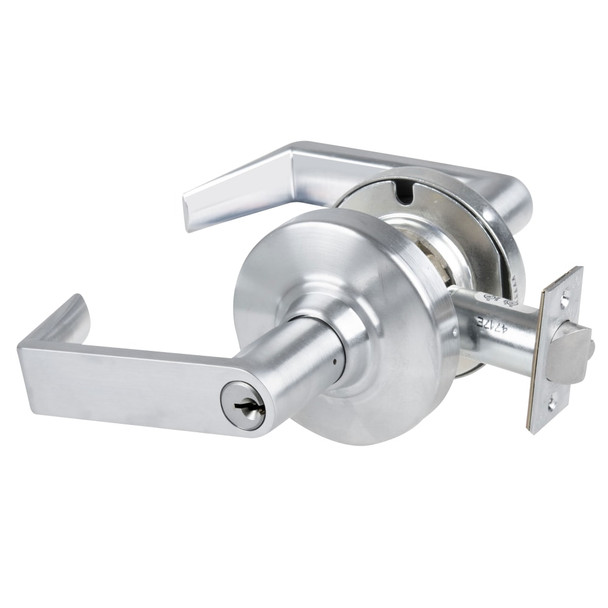

The Schlage ND80PD RHO 626 is a Grade 1 cylindrical lockset built for commercial facilities including healthcare, education, government, offices and retail environments. It delivers 3 million+ operating cycles without failure, making it ideal for high-traffic doors where reliability and durability matter most.
This lockset fits standard door thickness of 1 5/8" to 2 1/8" with a 2 3/4" backset and includes a 6-pin Everest 29 S123 keyway with two nickel silver keys. It supports master keying, keying options and wire-wireless access control integration. As an authorized Schlage dealer, E.D. Locks provides expert guidance and support at sales@edlocks.com or 1-877-207-6067 to ensure proper selection and installation for your application.
Specifications
- Brand: Schlage
- Model: ND80PD RHO 626 EE212
- Grade: 1 (ANSI/BHMA certified)
- Operating Cycles: 3 million+
- Door Thickness: 1 5/8" to 2 1/8" (41-54mm)
- Backset: 2 3/4" standard (70mm); optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4" (29mm x 57mm) square corner, beveled
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Finish: Satin Chrome
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver per lock
- Keying: Master keying, grand master keying, construction keying available
- Strike: ANSI curved lip, 1 1/4" x 4 7/8" x 1 3/16"
- Warranty: Ten-year limited
