Description

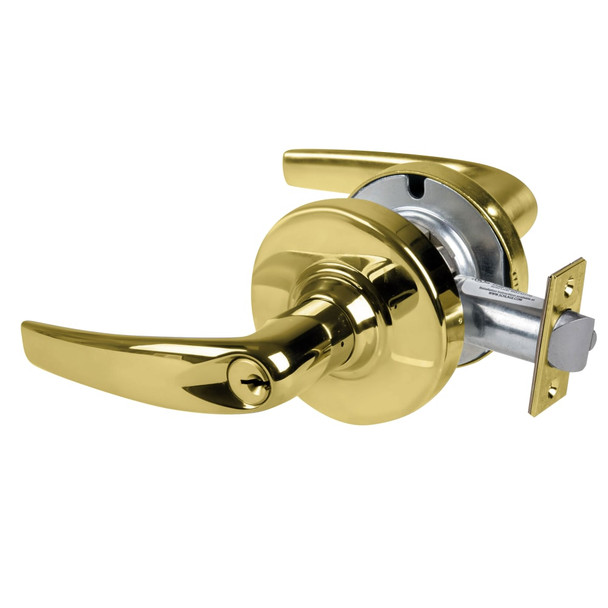

The Schlage ND53PD ATH 605 is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, office and retail environments. This non-handed lock installs easily on standard door thicknesses and delivers proven reliability with a 3-million-cycle tested design that exceeds industry expectations for durability and security.
The ND53PD ATH 605 fits doors 1 5/8" to 2 1/8" thick with standard 2 3/4" backset, and supports master keying, grand master keying and construction keying options. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying strategy, function selection and installation. Contact our sales team at sales@edlocks.com or call 1-877-207-6067 for personalized support.
Specifications
- Brand: Schlage
- Series: ND
- Grade: 1 (exceeds 3 million operating cycles)
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two patented nickel silver keys per lock
- Keying Options: Master, grand master, construction keying; interchangeable core and Primus high-security cylinders available
- Strike: ANSI curved lip strike 1 1/4" x 4 7/8" x 1 3/16" standard
- Warranty: Ten-year limited
