Description

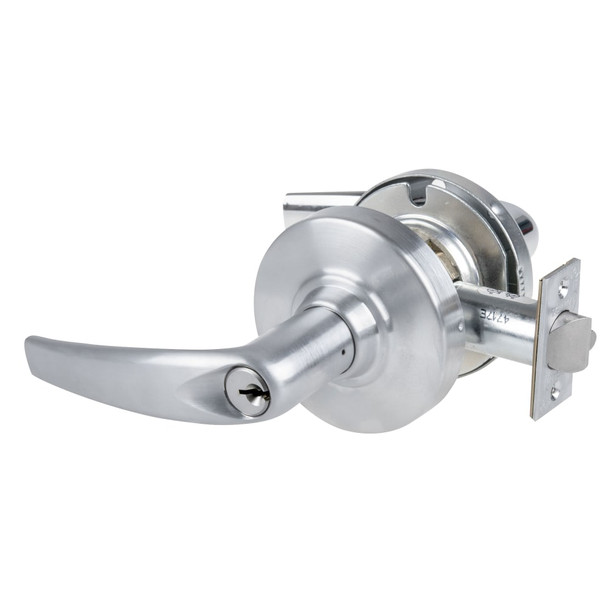

The Schlage ND53PD ATH 626 is a Grade 1 cylindrical lockset built for commercial applications in healthcare, education, government, office and retail settings. This non-handed lock accommodates door thicknesses from 1 5/8" to 2 1/8" and delivers over 3 million operating cycles without failure, making it a reliable choice for high-traffic facilities demanding durability and performance.
The ND53PD features a standard 2 3/4" backset, brass faceplate, zinc-plated chassis and a 1/2" deadlocking latch bolt. It ships with two nickel silver keys per lock and supports master keying, construction keying and optional high-security cylinders. As an authorized Schlage dealer, E.D. Locks offers expert guidance on finish selection, keying options and installation. Contact sales@edlocks.com or call 1-877-207-6067 for assistance.
Specifications
- Grade: 1
- Brand: Schlage
- Model: ND53PD ATH 626 EE212
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Handing: Non-handed
- Faceplate: Brass, bronze or stainless steel; 1 1/8" x 2 1/4" square corner, beveled
- Lock Chassis: Zinc plated
- Latch Bolt: Steel, 1/2" (12mm) throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver per lock
- Keying Options: Master keying, grand master keying, construction keying, interchangeable core and Primus high-security cylinders
- Warranty: Ten-year limited
- Operating Cycles: 3+ million certified
