Description

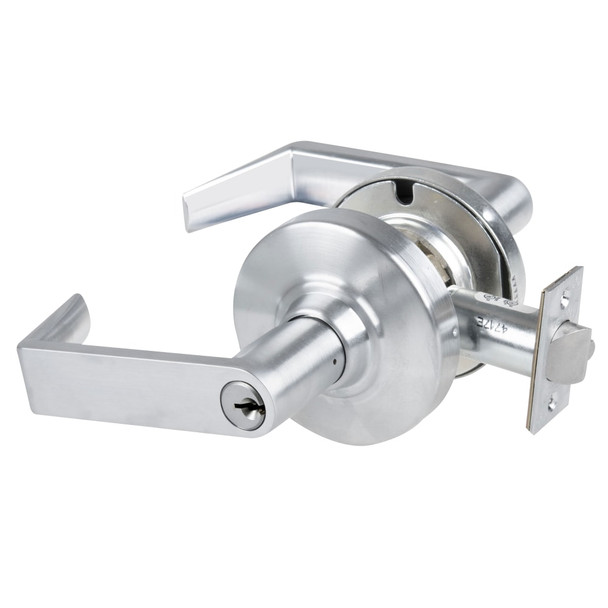

The Schlage ND53PD RHO 626 is a Grade 1 cylindrical lockset designed for commercial facilities including healthcare, education, government, office and retail environments. This non-handed lock simplifies installation and suits doors 1 5/8" to 2 1/8" thick, delivering proven reliability with extensive keying and trim options for nearly any application.
The lock accommodates standard 2 3/4" backset with optional 2 3/8", 3 3/4" and 5" configurations, and includes wire-wireless access control capabilities. It features a 6-pin Everest 29 S123 keyway with two nickel silver keys per lock, plus master keying and interchangeable core options. Contact an authorized E.D. Locks & Security dealer at sales@edlocks.com or 1-877-207-6067 for expert keying guidance and installation support.
Specifications
- Brand: Schlage
- Model: ND53PD RHO 626 EE212
- Grade: 1
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Handing: Non-handed
- Latch Bolt: Steel, 1/2" (12mm) throw, deadlocking
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Lock Chassis: Zinc plated
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver keys per lock
- Keying Options: Interchangeable core, Primus high security, master keying, grand master keying, construction keying
- Strike: ANSI curved lip 1 1/4" x 4 7/8" x 1 3/16"
- Warranty: Ten-year limited
