Description

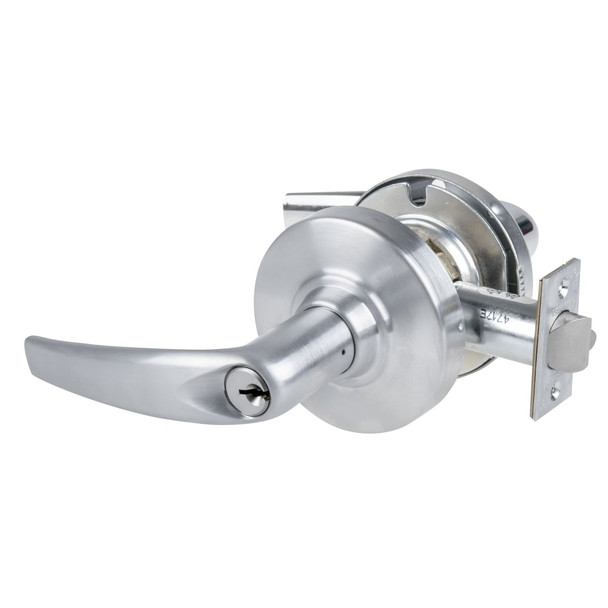

The Schlage ND53PD ATH 626 is a Grade 1 cylindrical lockset engineered for commercial facilities including healthcare, education, government, office, and retail environments. This non-handed lock delivers 3 million+ cycle durability, meeting demanding security and access control requirements for any building type.
Fits standard door thicknesses from 1 5/8" to 2 1/8" with a 2 3/4" backset, and includes a 6-pin Everest 29 keyway with two keys per lock. Master keying and interchangeable core options are available. As an authorized Schlage dealer, E.D. Locks provides expert guidance and fast shipping; contact sales@edlocks.com or 1-877-207-6067 for specifications, keying assistance, or bulk orders.
Specifications
- Brand: Schlage
- Series: ND
- Model: ND53PD ATH 626 EE214
- Grade: 1
- Door Thickness: 1 5/8" to 2 1/8" (41-54 mm) standard
- Backset: 2 3/4" (70 mm) standard; 2 3/8", 3 3/4", 5" optional
- Handing: Non-handed
- Latch Bolt: Steel, 1/2" throw, deadlocking
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled
- Cylinder: 6-pin Everest 29 S123 keyway
- Keys: Two nickel silver keys per lock
- Strike: ANSI curved lip, 1 1/4" x 4 7/8" x 1 3/16"
- Warranty: 10-year limited
- Durability: 3 million+ operating cycles
