Description

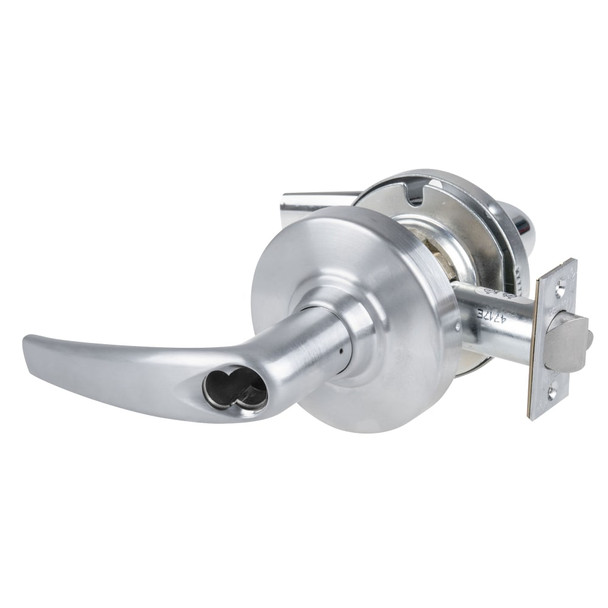

The Schlage ND80BD ATH 626 is a Grade 1 cylindrical lockset built for demanding commercial environments including healthcare, education, government, and retail facilities. This non-handed lever lock installs easily on standard door thicknesses and delivers proven reliability through over 3 million operating cycles without failure, giving you confidence in any application.
Fits doors 1 5/8" to 2 1/8" thick with standard 2 3/4" backset; optional backsets and spacers available for other configurations. Features a 6-pin Everest 29 keyway, steel deadlocking latch, and zinc-plated chassis for corrosion resistance. As an authorized Schlage dealer, E.D. Locks provides expert guidance on keying options, master keying, and access control integration. Contact sales@edlocks.com or 1-877-207-6067 for technical support.
Specifications
- Grade: 1
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41mm-54mm) standard
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5"
- Faceplate: Brass, bronze, or stainless steel; 1 1/8" x 2 1/4" square corner, beveled
- Latch Bolt: Steel, 1/2" (12mm) throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway, includes two nickel silver keys
- Lock Chassis: Zinc plated
- Operating Cycles: 3+ million
- Warranty: Ten-year limited
