Description

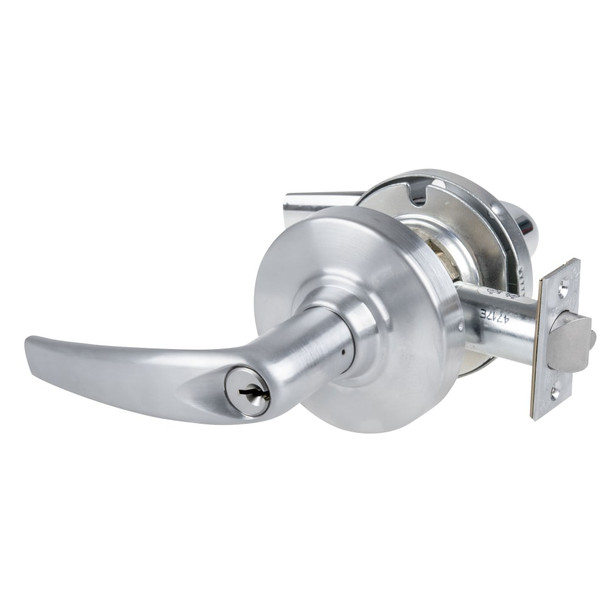

The Schlage ND80PD ATH 626 is a Grade 1 cylindrical lockset designed for commercial facilities including healthcare, education, government, office and retail environments. This non-handed lock installs easily on standard 1 5/8 to 2 1/8 inch doors and delivers proven security with extensive keying, trim and finish options to fit nearly any application.
The ND Series is certified Grade 1, exceeding 3 million operating cycles without failure, and includes wire-wireless access control capabilities. This lock comes standard with a 6-pin Everest 29 S123 keyway, two keys per lock, and supports master keying and interchangeable core options. As an authorized Schlage dealer, E.D. Locks provides expert guidance on configuration and keying. Contact sales@edlocks.com or 1-877-207-6067 for assistance selecting the right specifications for your facility.
Specifications
- Grade: 1
- Handing: Non-handed
- Door Thickness: 1 5/8" to 2 1/8" (41-54mm) standard; optional for 1 3/8" with spacers
- Backset: 2 3/4" (70mm) standard; optional 2 3/8", 3 3/4", 5" (60mm, 95mm, 127mm)
- Faceplate: 1 1/8" x 2 1/4" square corner, beveled; brass, bronze or stainless steel
- Latch Bolt: Steel, 1/2" (12mm) throw, deadlocking
- Cylinder: 6-pin Everest 29 S123 keyway standard
- Keys: Two patented nickel silver keys per lock
- Keying Options: Master keying, grand master keying, construction keying, interchangeable core, Primus high-security cylinders
- Strike: ANSI curved lip 1 1/4" x 4 7/8" x 1 3/16" standard
- Warranty: Ten-year limited
