Description

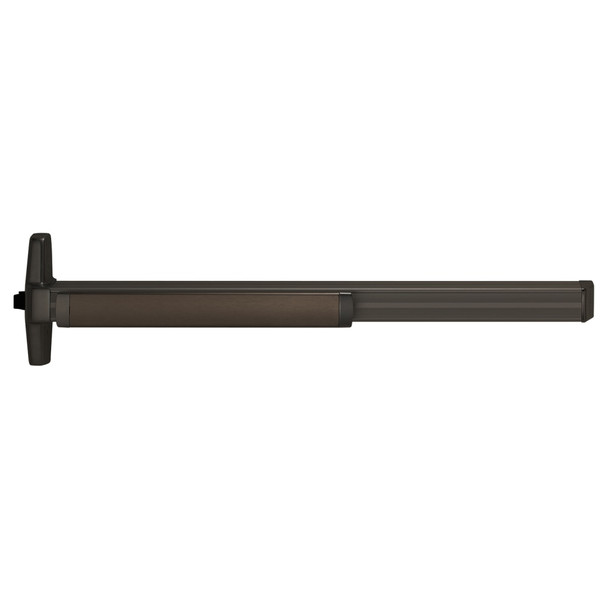

The Von Duprin QEL33ANL-OP 3 313 is a UL-listed panic exit device built for single and double doors with mullion. Designed for commercial facilities requiring Grade 1 ANSI A156.3 compliance, it solves the need for reliable emergency egress hardware that meets life safety codes. The 33A features a grooved case and non-handed design, ideal for retrofits and multi-door applications.
This rim-mounted device installs on wood or metal doors 2'4" to 4' wide and is compatible with standard outside trim options. Von Duprin offers extensive electric and dogging configurations to match your facility's security needs. As an authorized dealer, E.D. Locks provides expert guidance on selection and installation. Contact our team at sales@edlocks.com or 1-877-207-6067 for custom quotes and support.
Specifications
- Model: QEL33ANL-OP 3 313
- Brand: Von Duprin
- Grade: ANSI A156.3 2014 Grade 1
- Case Type: 33A Grooved
- Handed: Non-handed (except with SS option)
- Door Width Range: 2'4" to 4'
- Device Centerline: 39 13/16" from finished floor
- Center Case Dimensions: 8 3/16" x 2 13/32" x 1 9/16"
- Mechanism Case: 2 1/4" x 2 1/4"
- Pushbar Projection: 3 13/16" neutral, 3 1/16" depressed
- Latch Bolt: Deadlocking, 3/4" throw
- Dogging: Hex key standard; CD and LD options available
- Electric Options: LX, RX, RX2, SS, EL, ALK
- Strike: 1439 Dull Black
- UL Listed for panic exit
