Description

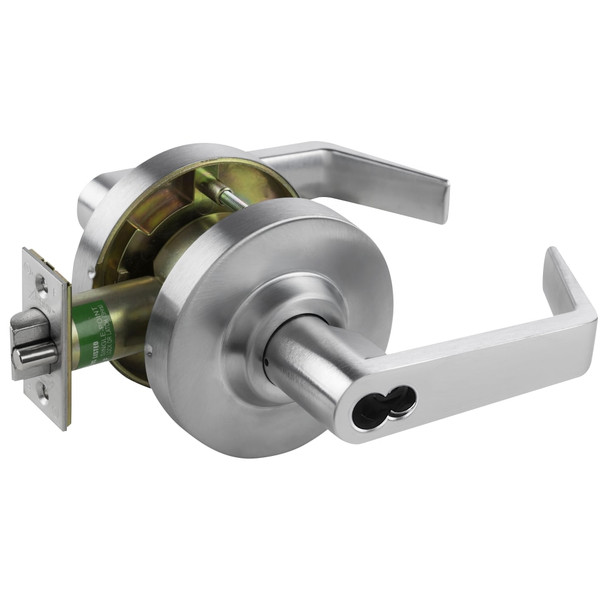

The Arrow QL81 is a Grade 1 cylindrical lockset built for commercial doors needing reliable, abuse-resistant security. Its freewheeling lever design protects against tampering, while two-screw installation speeds deployment in offices, retail, and institutional settings. The 10-year mechanical warranty backs your investment.
This lockset fits standard 2-1/8" bores and doors 1-3/8" to 1-3/4" thick with a 2-3/4" backset. It accepts Arrow AR and Schlage CS keyways and ships keyed different with 2 brass keys. As an authorized Arrow dealer, E.D. Locks provides expert fitting guidance and free shipping on orders over $450. Contact sales@edlocks.com or 1-877-207-6067 for application support.
Specifications
- Grade: 1
- Bore diameter: 2-1/8" (53.97mm)
- Backset: 2-3/4" (69.85mm)
- Door thickness: 1-3/8" to 1-3/4" (34.93mm to 44.45mm)
- Latch throw: 1/2" (12.7mm) stainless steel
- Latch front: 1-1/8" x 2-1/4"
- Lever length: 4-3/4" (120.65mm) pressure cast zinc
- Rose diameter: 3-11/32" (84.8mm) wrought brass
- Total projection: 2-17/32" (64.5mm)
- Cylinder: Solid brass 6-pin
- Keyways: Arrow AR, Schlage CS
- Strike: 4-7/8" ANSI (123.83mm)
- Handing: Non-handed
- Warranty: 10 years mechanical
- Packaging: 6 per case
- Keys included: 2 brass keys, keyed different
