Description

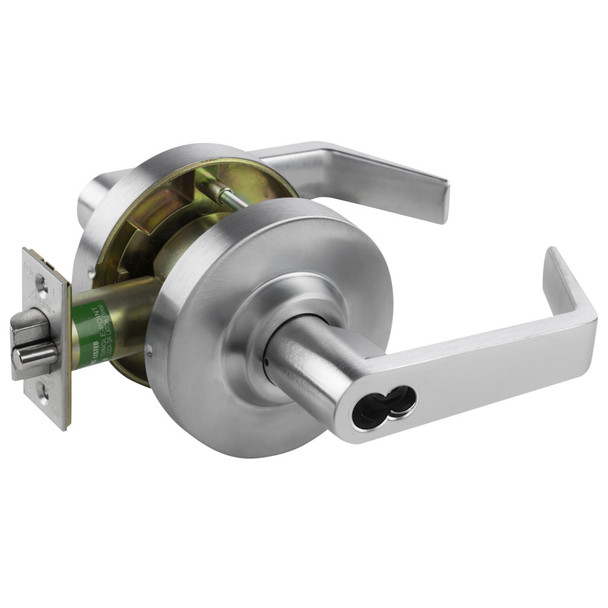

The Arrow QL81 is a Grade 1 cylindrical lockset built for commercial doors requiring abuse-resistant security. Its freewheeling lever design protects against tampering while the two-screw installation speeds deployment. Ideal for offices, retail, schools, and facilities upgrading or replacing worn hardware, backed by a 10-year mechanical warranty.
Fits standard 2-1/8 inch bore with 2-3/4 inch backset; works on 1-3/8 to 1-3/4 inch doors. The solid brass 6-pin cylinder accepts Arrow AR and Schlage CS keyways. As an authorized Arrow dealer, E.D. Locks provides expert guidance on keying, handing, and installation. Contact sales@edlocks.com or call 1-877-207-6067 for questions or fast shipping.
Specifications
- Brand: Arrow
- Model: QL81-SR-26D-SIC
- Grade: 1
- Door Bore: 2-1/8 inch (53.97mm)
- Backset: 2-3/4 inch (69.85mm)
- Door Thickness: 1-3/8 to 1-3/4 inch
- Latch: Stainless steel, 1/2 inch throw, UL Listed
- Lever Length: 4-3/4 inch
- Rose Diameter: 3-11/32 inch (brass)
- Total Projection: 2-17/32 inch (64.5mm)
- Strike: 4-7/8 inch ANSI
- Cylinder: Solid brass, 6-pin
- Keyway: Arrow AR / Schlage CS
- Keys Included: 2 brass keys
- Installation: Two-screw lockset
- Handing: Non-handed
- Warranty: 10 years mechanical
- Packaging: 6 per case
