Description

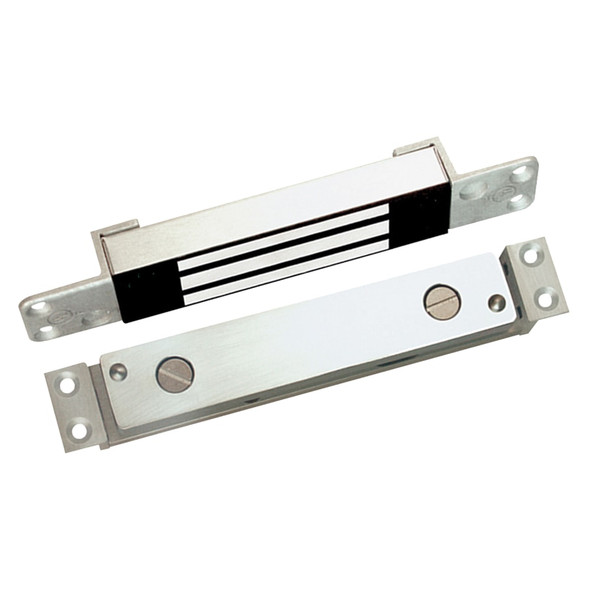

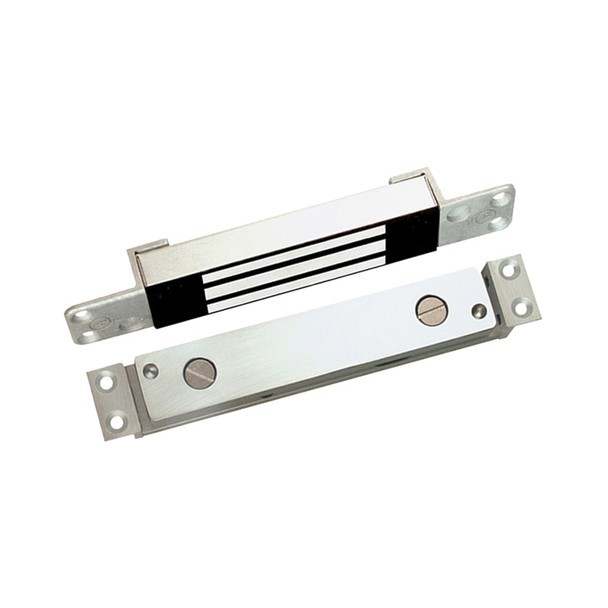

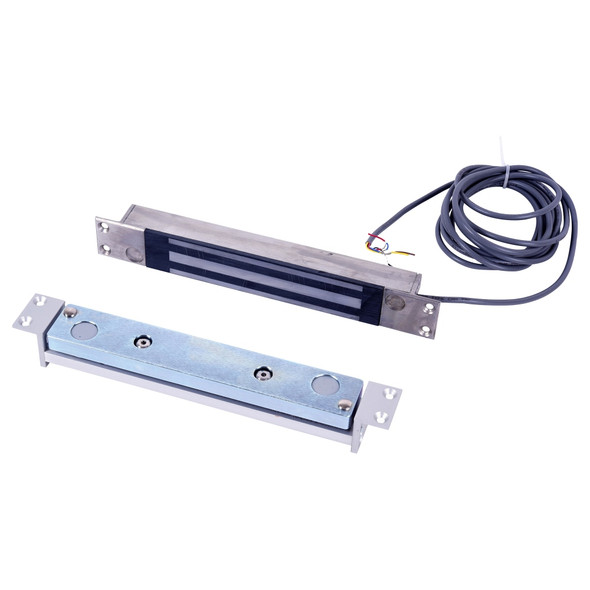

The Securitron SAM2-24 is a concealed electromagnetic maglock engineered for traffic control and medium-security applications. This shear-aligning maglock solves challenging door control needs across single doors or pairs, supporting sliding, in-swing, out-swing, and swing-through configurations. Fully sealed for weatherproof indoor and outdoor use, it mounts hidden within wood, steel, aluminum, or Herculite doors at the header, edge, or threshold.
The SAM2-24 operates on 24 VDC with low power consumption (170 mA) and delivers 1,200 lbs holding force. It includes 10 feet of jacketed cable, automatic dual-voltage capability, instant-release circuitry, and noise suppression. All ferrous surfaces are plated for rust resistance and durability across temperature extremes (-40 to +140F). Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert installation guidance and authorized dealer support.
Specifications
- Brand: Securitron
- Model: SAM2-24
- Holding Force: 1,200 lbs (544 kg)
- Magnalock Dimensions: 10-7/8"L x 1-3/16"D x 1-1/2"H
- Strike Dimensions: 10-7/8"L x 1-7/16"D x 1-1/2"H
- Electrical: 170 mA at 24 VDC; 320 mA at 12 VDC
- Operating Temperature: -40 to +140F (-40 to +60C)
- Cable: 10 ft jacketed stranded conductor
- Features: Concealed mounting, dual-voltage, instant release, noise suppression, weatherproof
- Applications: Indoor and outdoor
