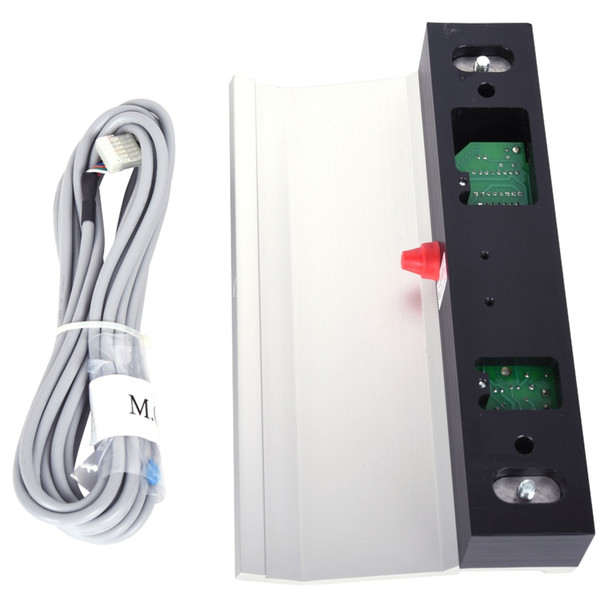

Securitron TSH-CL Push / Pull Touch Sense Request to Exit Switch Handle

Securitron TSH-CL Push / Pull Touch Sense Request to Exit Switch Handle

Securitron TSH-CL Push / Pull Touch Sense Request to Exit Switch Handle
$477.00 $317.21
(You save $159.79)


pdficon.pngInstallation and Operation Instructions

pdficon.pngTemplate

Sized to cover up existing mounting holes, the TSH is used for standard pulls on aluminum doors. It is employed to open inswinging doors or as an alternate push-open device for inswinging and outswinging doors, providing a different look on aluminum frame glass doors. For indoor use only.

Features

  • For use on any push, pull or swing-through door
  • Activates a DPST 2 Amp rated relay when touched (no mechanical movement) which allows free egress
  • Backup push button
  • 16ft. [4.8m] 22AWG 6 conductor cable and armored door cord included
  • Operates on either 12 or 24VDC
  • Available ElectroLynx™ ready
  • UL Listed
  • MagnaCare® lifetime replacement, no fault warranty

Specification

  • Current Draw: 40mA at rest; 25mA releasing
  • Voltage: 12 or 24VDC
  • Operating Temperature: +32 to +110F [0 to +43C]
  • Shipping Weight: 3 lbs.
  • Clear anodized finish
