Description

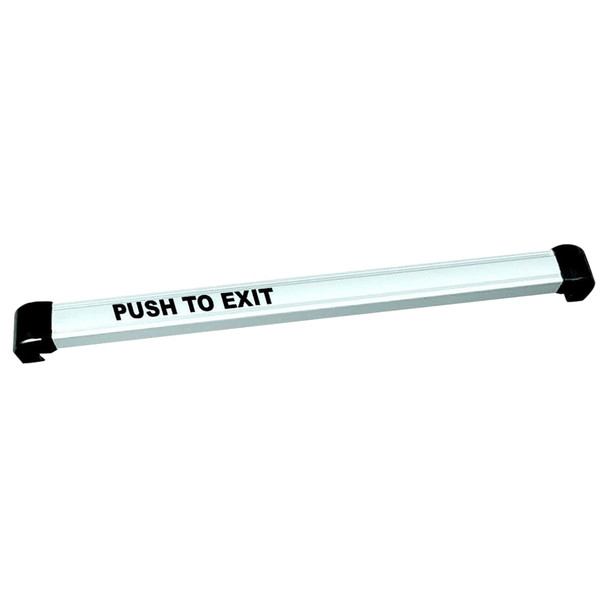

The Securitron TSB-CL-42 is a touch-triggered electronic release bar for magnetically locked doors. Ideal for facilities requiring hands-free or gloved egress, it solves accessibility challenges by allowing door release through light gloves or clothing. The sensor activates a relay for immediate unlock or controlled delay, meeting ADA and fire code no-special-knowledge requirements.
Installs on metal, aluminum, or wood frame doors up to 2-1/4" thick using the included through-bolt kit. The 16 ft. cable and armored cord simplify field installation. Dual-voltage operation (12/24 VDC) and optional ElectroLynx compatibility ensure seamless integration with most access control systems. Contact E.D. Locks at sales@edlocks.com or 1-877-207-6067 for expert system design and commissioning support.
Specifications
- Field-cuttable up to 48" for non-standard openings
- DPST 2A rated relay, no mechanical movement
- Backup push button on rear for redundant release
- 16 ft. 22AWG 6-conductor cable included
- Automatic dual-voltage: 12 VDC/24 VDC
- Power consumption: 40 mA at rest, 25 mA releasing
- Through-bolt kit for doors up to 2-1/4" thick
- Includes trailing edge timer
- Indoor use only
- ElectroLynx ready option available
